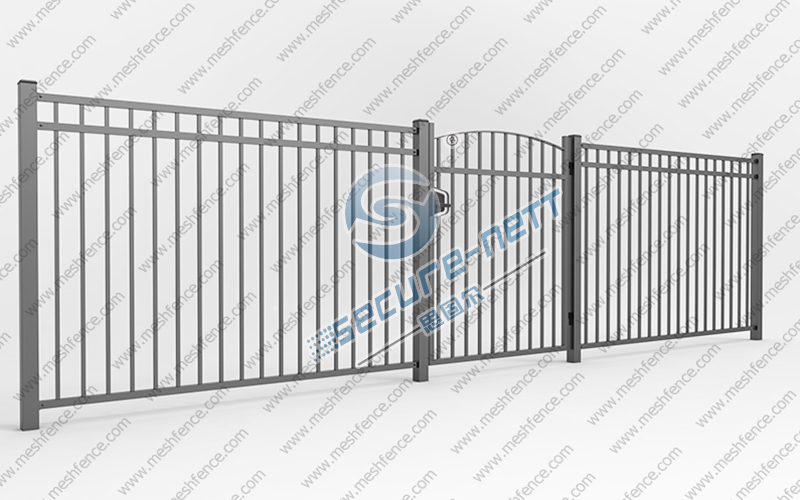

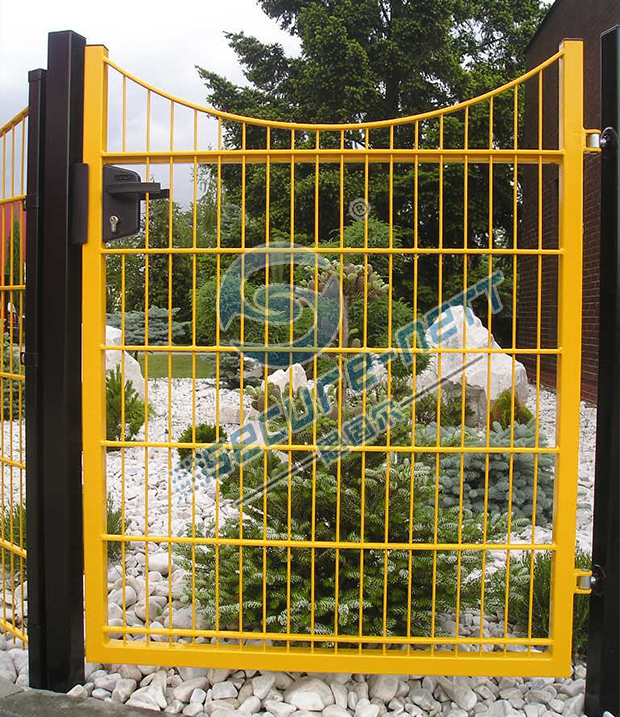

Introduction

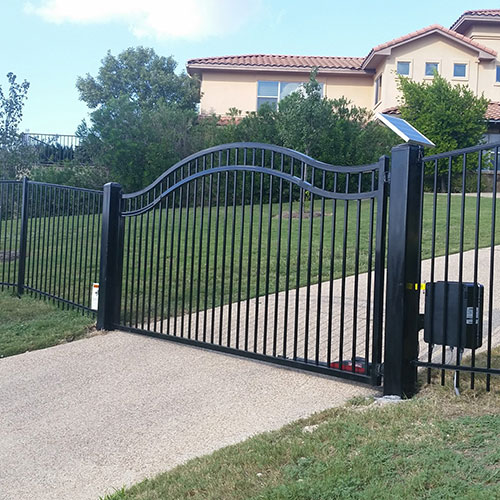

Steel fence gate is made of galvanized tube. The surface is powder coating with AkzoNobel anti-oxidation powder which imported from Europe. The tops of metal fence gate are available in flat top, spear top, extended top, etc. The post is galvanized square pipe, with powder coated, the features are anti-rust and waterproof, it is a better choice to protect your privacy.

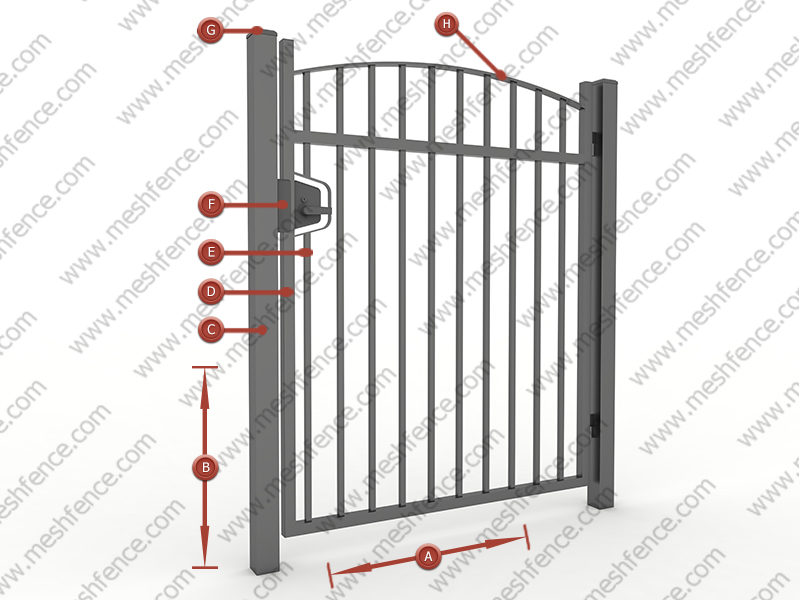

A. WIDTH: 1000MM/1500MM/1800MM
B. HEIGHT: 1000mm / 1200mm/1400mm / 1600mm / 1800mm / 2000mm
C. POST : 40mm*40mm/60mm*60mm/80mm*80mm
D. FARM PIPE: 50mm*50mm / 60mm*60mm / 75mm*75mm(Square Post)
E. PICKET SIZE: 20mm*20mm / 25mm*25mm / 30mm*30mm
F. GATE LOCK
G. POST CAP: Metal Cap / Anti-UV PP Plastic Cap
H. SURFACE:Pre Hot Dipped Galvanized (270/m²) Galvanized + PVC Coated (All colors in Ral)
Features

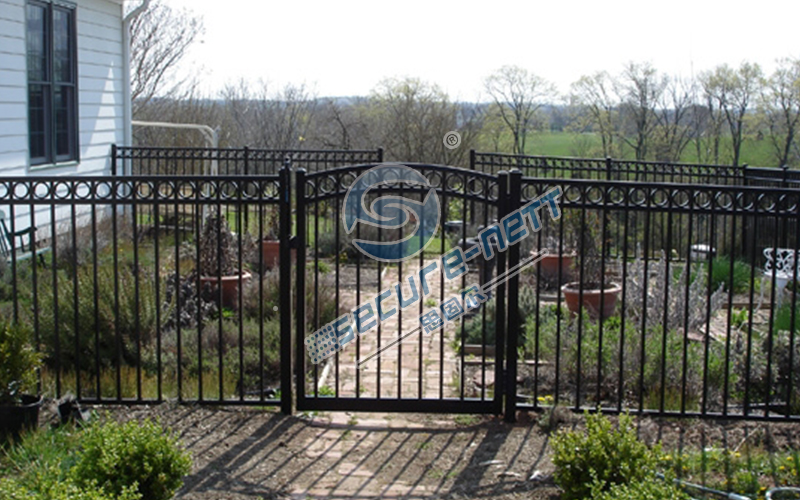

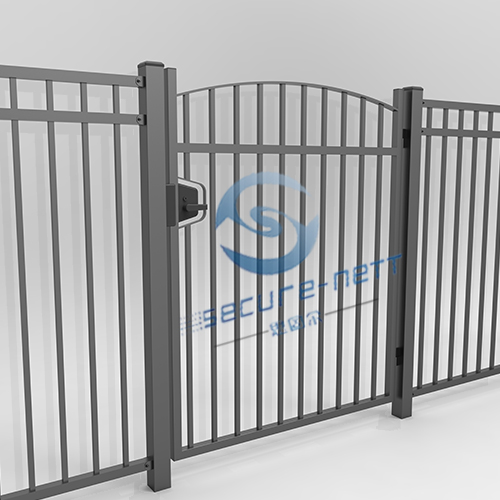

Easy To Install
The steel fence gate is very easy to install, you just need to connect the gate post and the fence together. The clamps can fixed very strong.
The steel fence gate is welded by steel pipes, which is more powerful. Fences are not easy to cut and climb. We can count the container based your quantity and specifications.

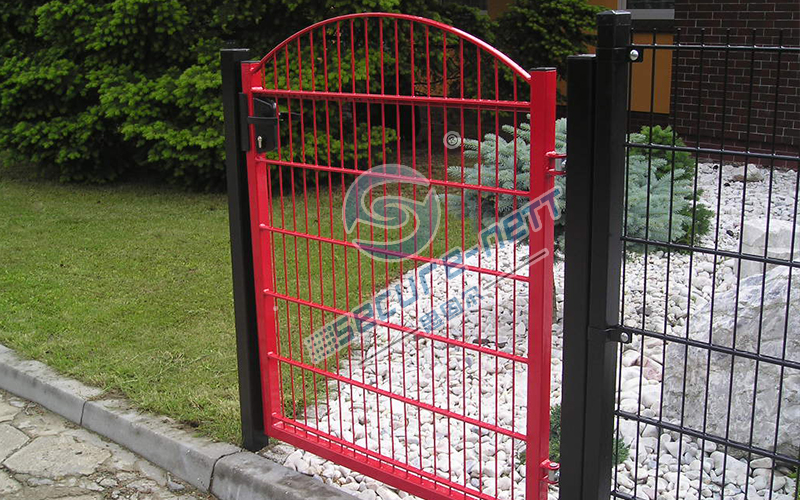

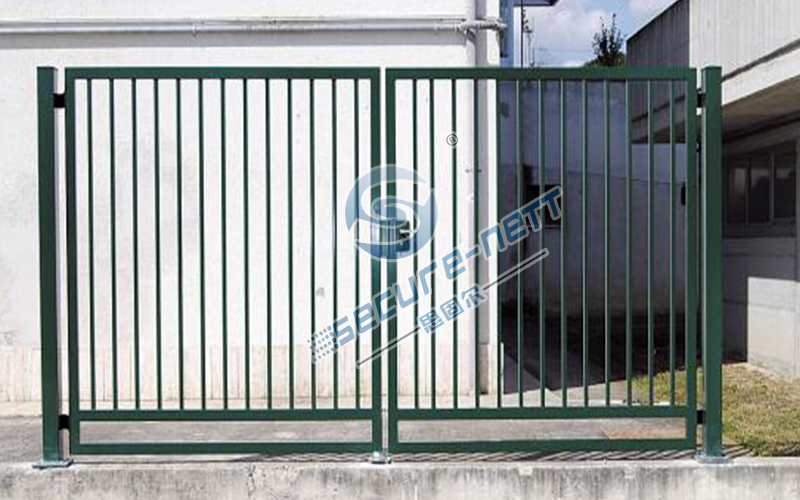

Safety
Steel fence gate with steel fences are used for fenced parking areas, residential areas, office buildings, factories, gardens and city parks due to the relatively high price and low safety features. It is more easily accepted by urban residents. It won't hurt children when playing.

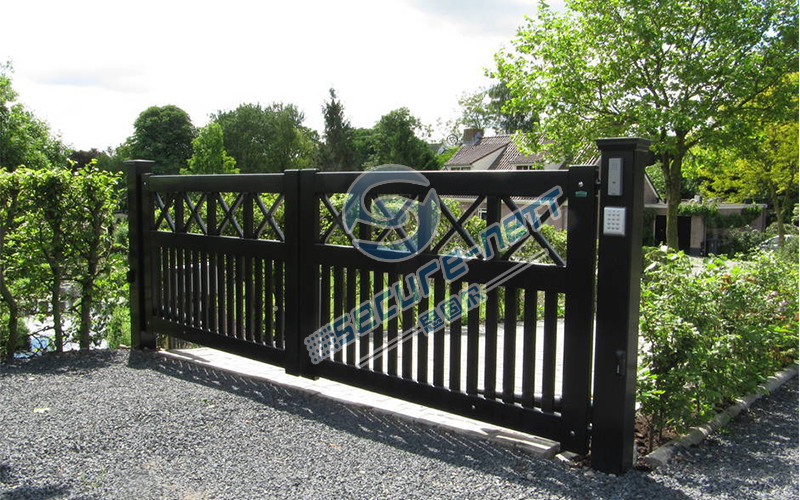

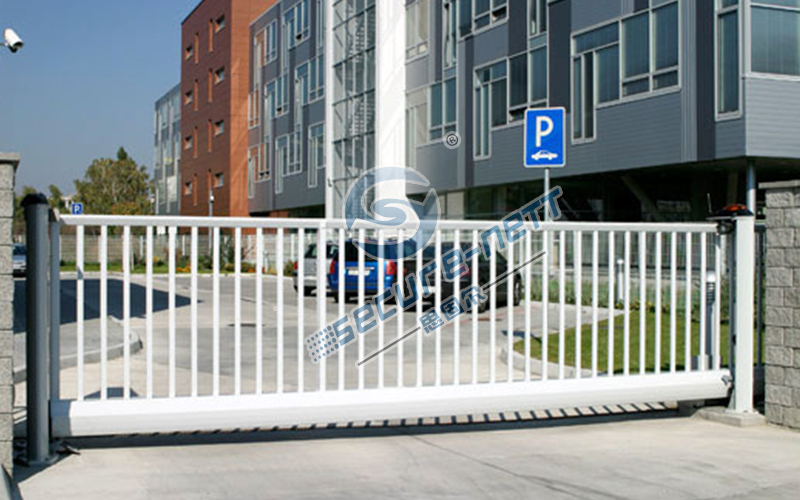

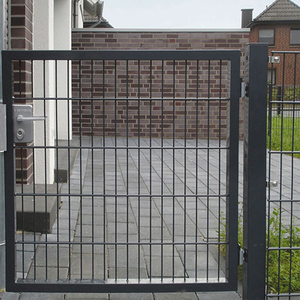

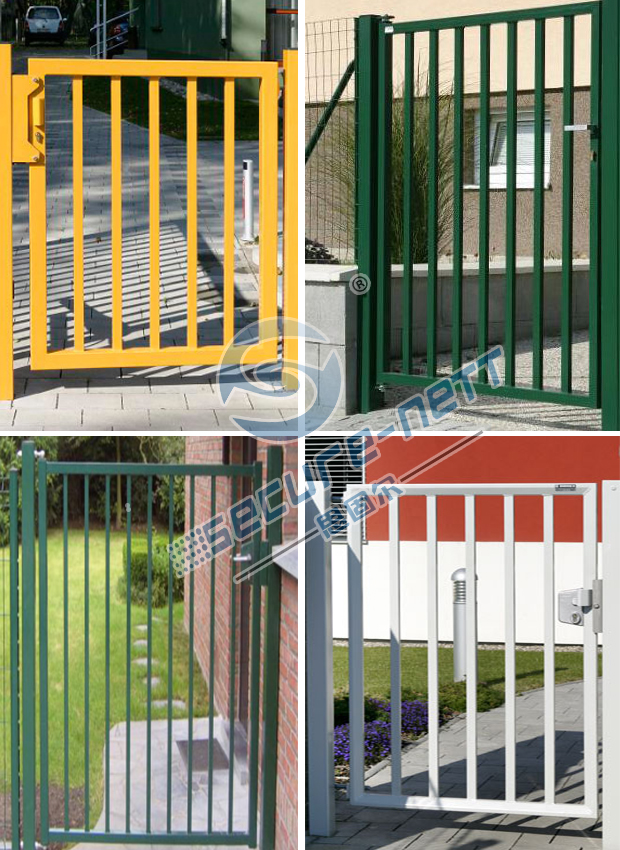

More Styles

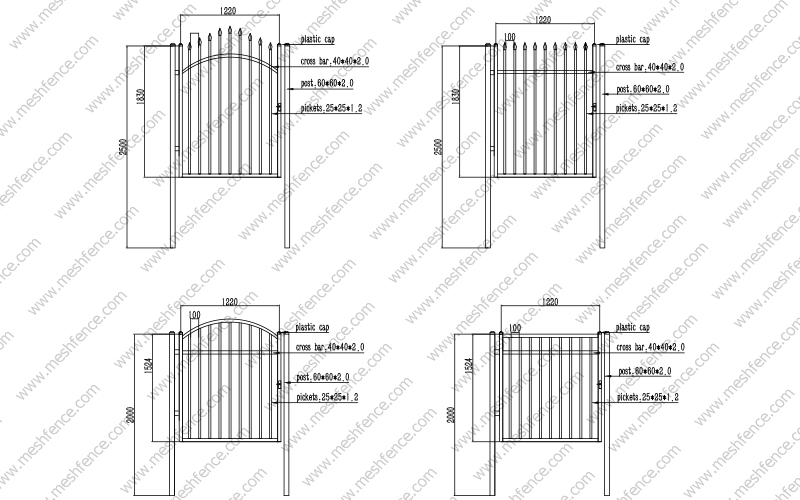

Conceptual Drawings
Product Process
Galvanized pipe cutting; spear pressing; tube hole punching (punching holes for vertical bar; punching of horizontal bar; punching holes of post); welding; washing; surface treatment; packing; installation.
lFirst cut the steel or aluminum tube into the required length
Welding the farm structure
Punching holes of steel tubes
Use the mould to fix the cut tube then weld the rail and pickets.
Washing / Surface Cleaning: The workers first use the small polish machine to polish the welding points one by one. After finished all the welding,using the big polish machine (steel sand ) to wash the oil.
Surface Treatment: Then finish the zinc plating. The last surface treatment can be hot dip zinc plating or zinc plating plus power coating.
Our Service
Free sample is available ,specifications based on your require.
CE .SGS or other Certifications can be provided based on your require.
As engineers we offer an evaluation of your designs and provide a workable solution.
OEM requires are accepted, We can deliver conceptual drawings to support your plans.
As manufacture ,we got the competitive price and we can ensure the shortest delivery time.
Factory located in mainland of China, you are welcome to visit and we will accompany with you.
Our factory has established for 17 years and got ISO9001 quality certificate, High quality can be ensured.
