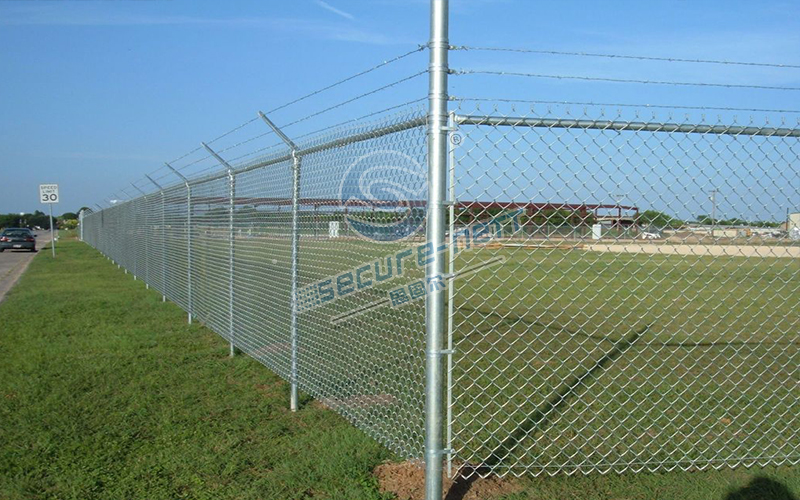

Chain Link Fence

Share to:

Chain link fence is one kind of netting fence, also called diamond net. It is made of high-grade galvanized wire, zinc coated is about 40-80g/m2, and PVC coated is around 150μ-200μ,so will be not fold or tear when weave mesh fence, and it is not easy to damage cracking during production preparation.

Quantity:

Introduction

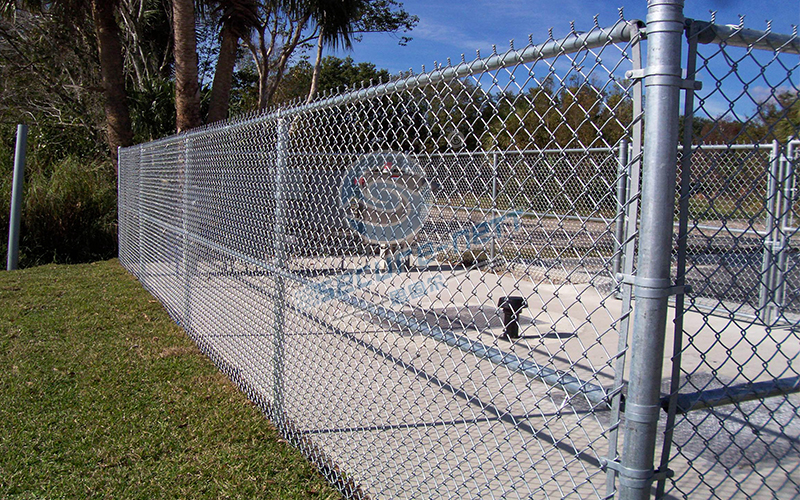

Chain-Link-Fence-1

Chain link fencing is one kind of netting fence, also called diamond net. It is made of high-grade galvanized wire, zinc coated is about 40-80g/m2, and PVC coated is around 150μ-200μ,so will be not fold or tear when weave mesh fence, and it is not easy to damage cracking during production preparation.  Chain link fencing can also be used as temporary fence.

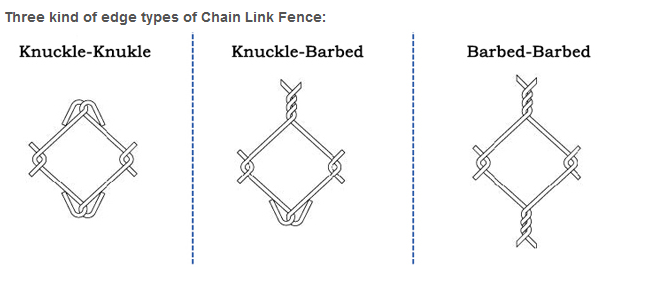

There are also three types of edges, the folded side and the two twisted side. Raw materials can be galvanized steel wire or PVC coated steel wire.

Chain Link Fencing

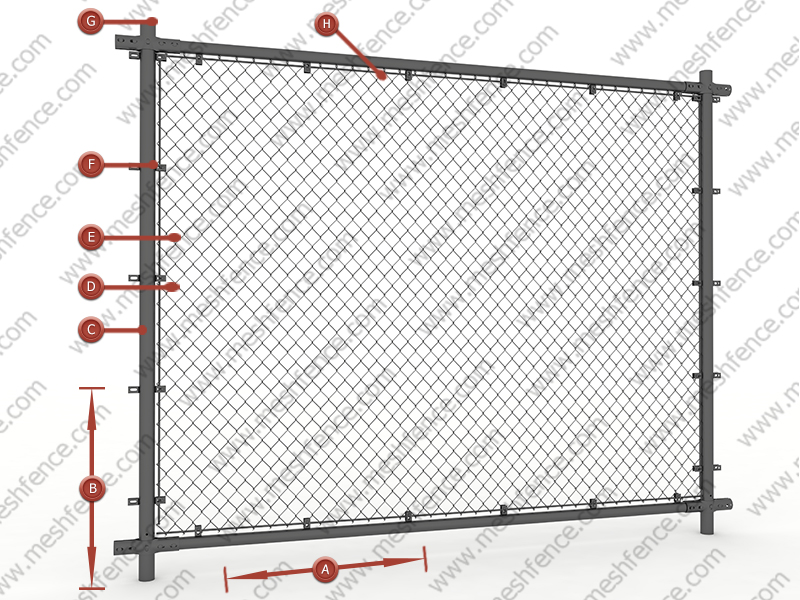

Chain Link Fence

A. WIDTH: 2000mm / 2500mm / 3000mm

B. HEIGHT: 1200mm / 1400mm / 1600mm / 1800mm / 2000mm / 2200mm

C. POST: Round Post (diameter  42mm / 48mm / 50mm / 60mm / 75mm)

D. WIRE THICKNESS: 2.5mm / 3.0mm / 3.5mm / 4.0mm / 4.5mm / 5.0mm

E. MESH SIZE: 40mm*40mm / 50mm*50mm / 75mm*75mm

F. CLAMP: Metal Clamp

G. POST CAP: Metal Rain Cap / Anti-UV PP Cap

H.  SURFACE: Pre Hot Dipped Galvanized (100 / 200 / 250 / 280g/m²) Galvanized + PVC Coated (All colors in Ral)

Features


 Woven Process

Chain link fencing Different with other wire mesh fences, chain link fences is not welded by the wires but woven together. The connection of the chain link fencing is to use the flat bar or Round steel to connect the chain link fence panel and then using the clamps to the post.Chain link fencing can be produced into mesh panel or rolls according to requirements, the production cycle is short and the required length can be customized according to the needs.

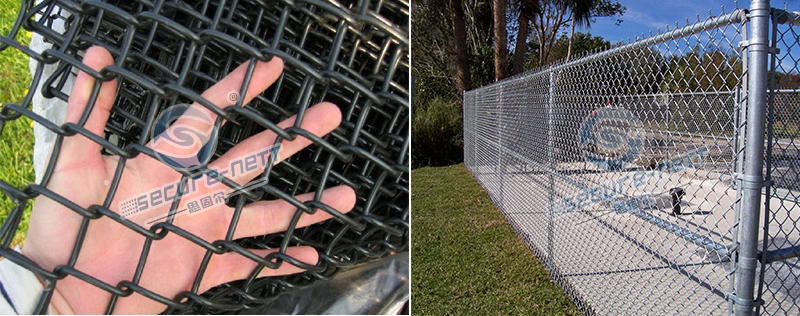

Chain link fencing Woven Process


 Variety Situation

chain link fences are used in various places, such as school playgrounds, fields and farms, private gardens, factories, and on both sides of airports and rivers. It can also be used for stadium fencing. The stadium fencing with a height of less than 4 meters is suitable for basketball court fencing, volleyball court fencing and sports training ground.

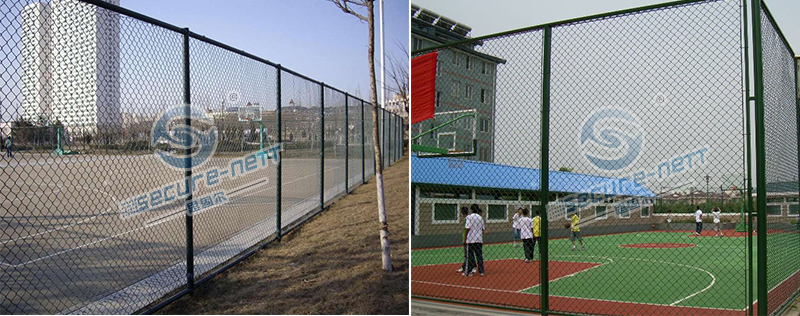

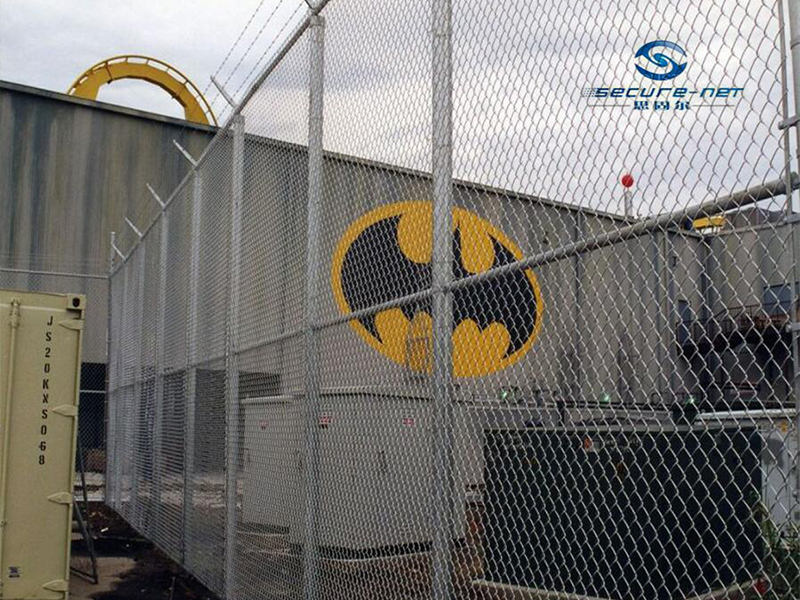

Chain link fencing Variety Situation

Chain link fencing Variety Situation

Application

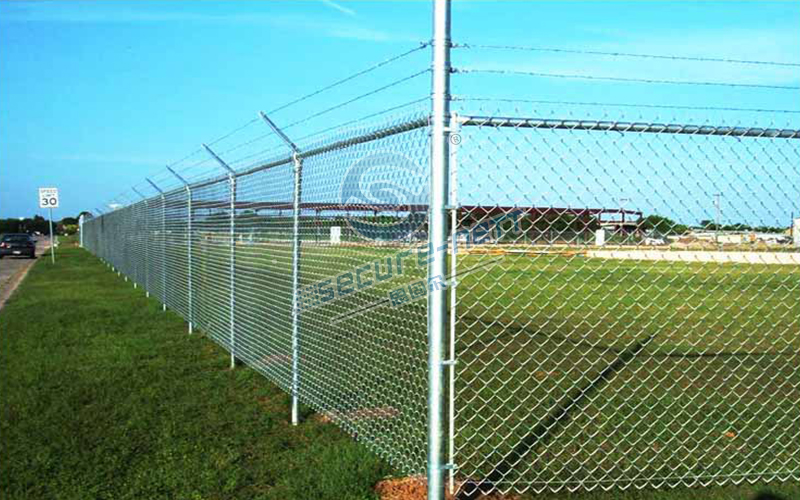

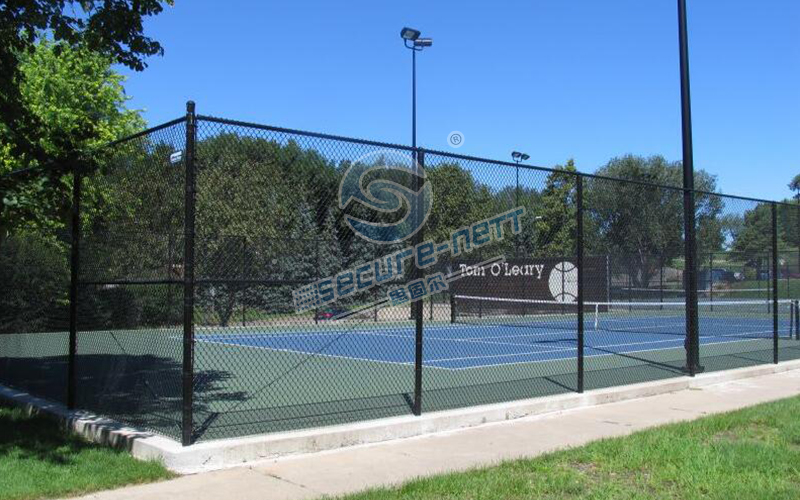

Chain Link Fencing For Sports Area

Chain Link Fencing For Sports Area

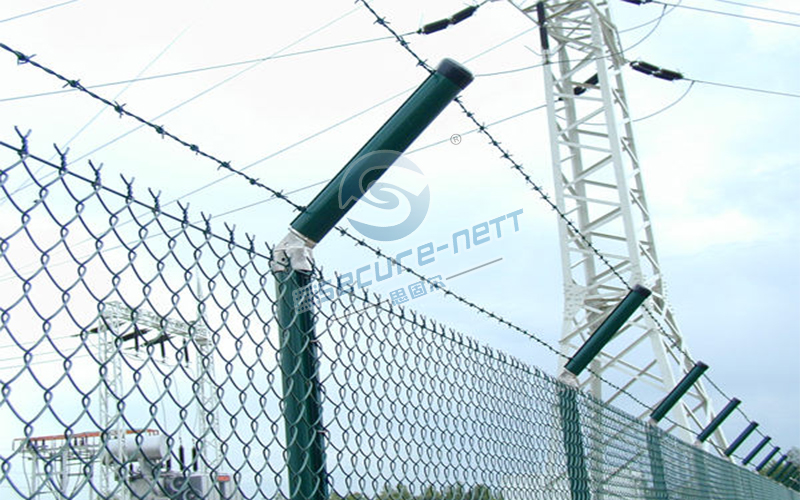

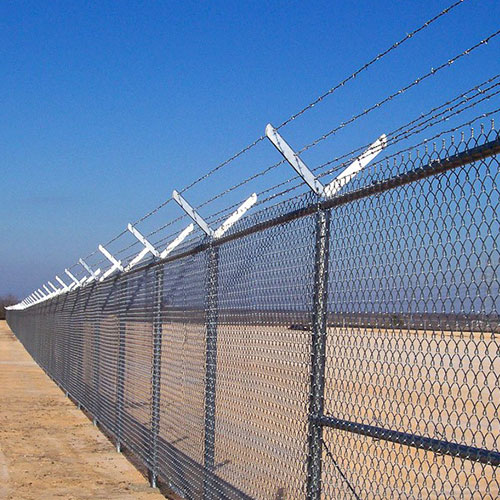

Chain Link Fencing For High Security Area

Chain Link Fencing For High Security Area

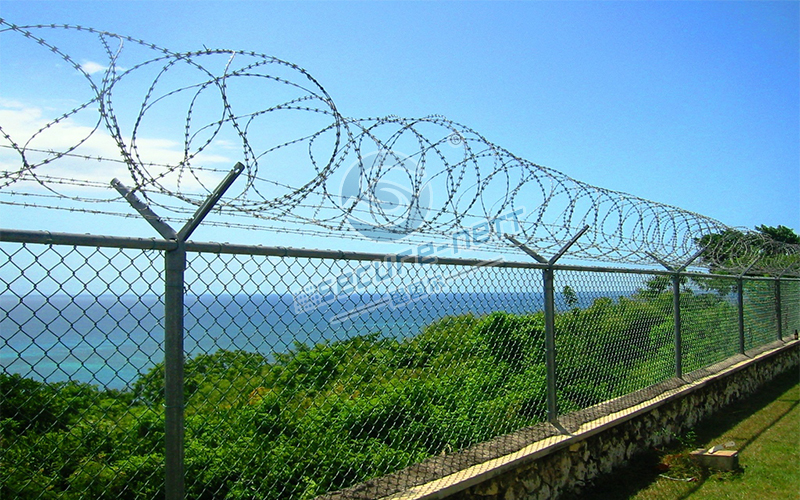

Chain Link Fencing For Tourist Area

Chain Link Fencing For Tourist Area

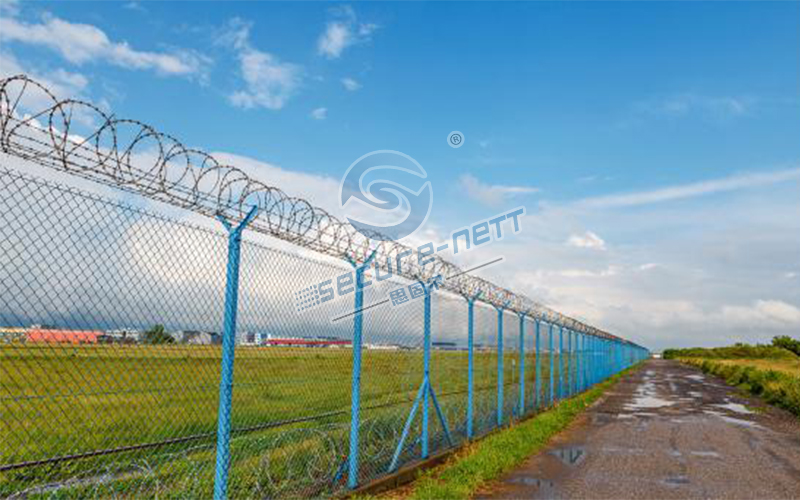

Chain Link Fencing For Farm

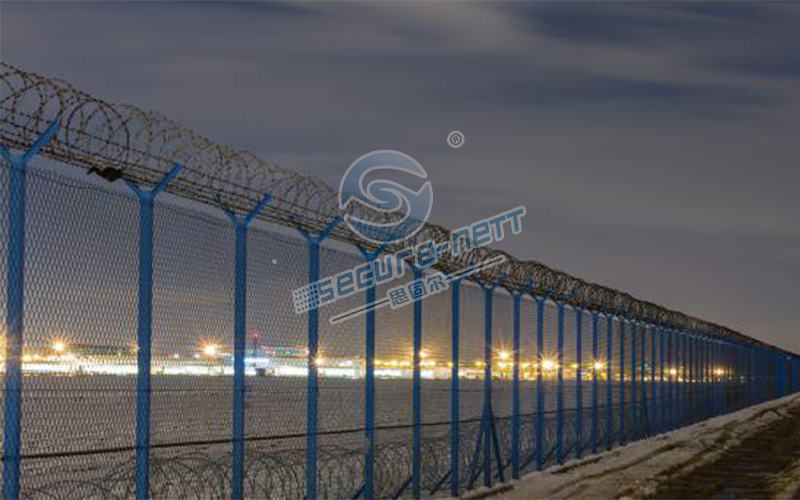

Chain Link Fencing For Farm


Chain Link Fencing For Farm

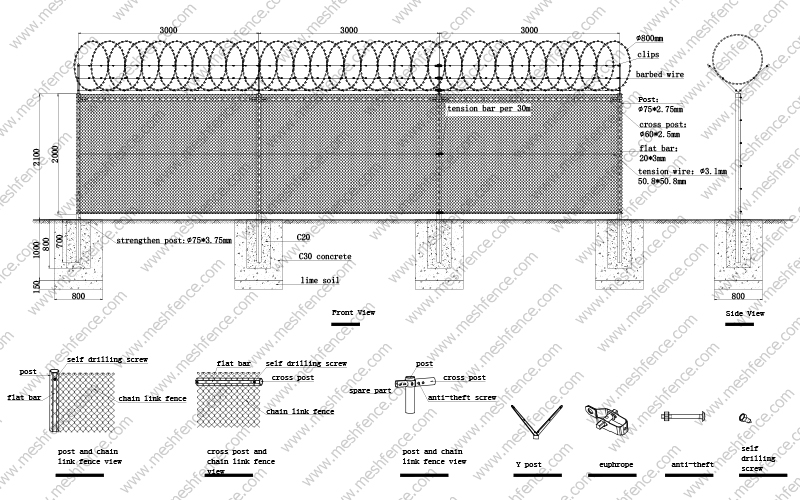

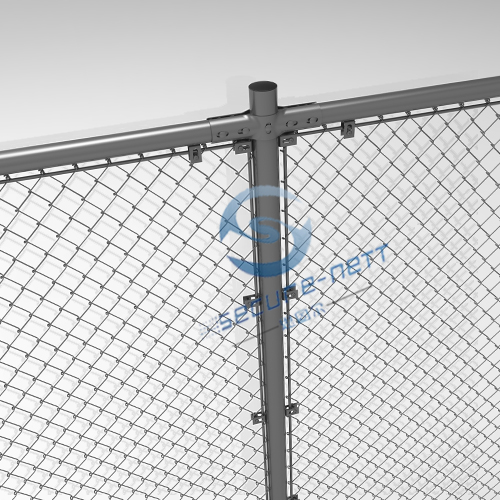

   Conceptual Drawings

Chain Link Fencing

Product Process And Factory View

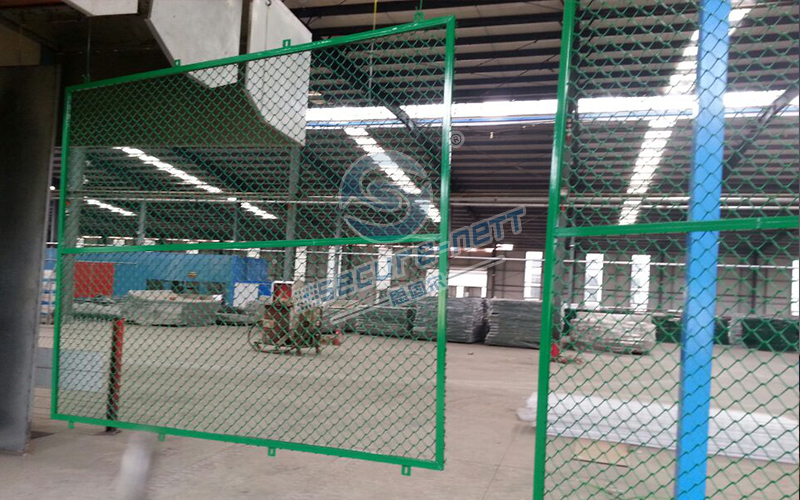

Product-Process

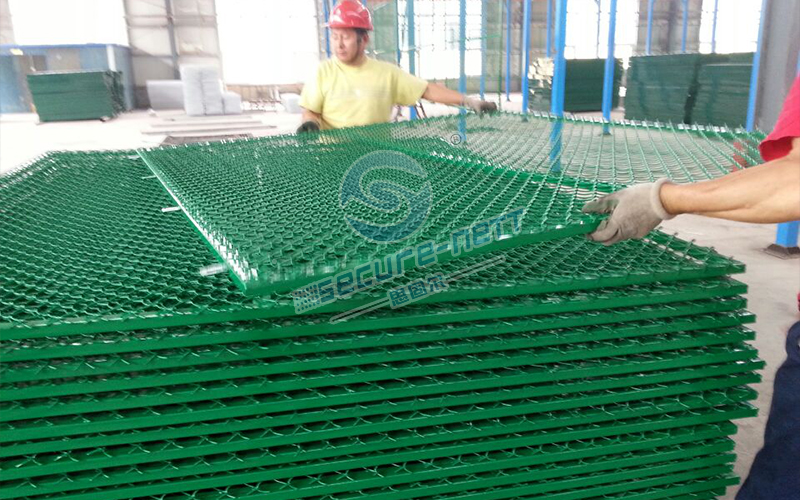

Product-Process

There are two kinds of production techniques of the chain link Fence.

No.1  Use the high-quality low-carbon steel wire to be directly woven by automatic machine, and the surface is processed after the frame is embedded. Pre Hot Dipped Galvanized (100 / 200 / 250 / 280g/m²) or  Galvanized + PVC Coated (All colors in Ral) are available.



No.2  The high-quality low-carbon steel wire is wrapped by PE plastic. After 300 °C high-temperature plasticization, the inner low-carbon steel wire is closely adhered to the surface plastic. It is not easy for air to penetrate into the steel wire surface and prevent rust caused by oxidation. The unique weaving technology ensures that there are no cracks in the bend of the product during production.

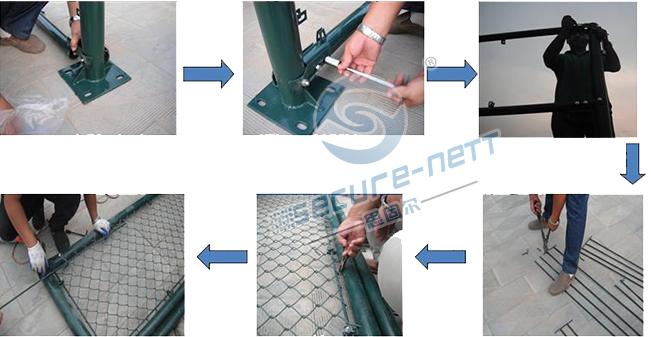

  Install Process (More details please contact us )

Chain Link Fencing Install-Process

Our Service

  • Free sample is available ,specifications based on your require.

  • CE .SGS or other Certifications can be provided based on your require.

    As engineers we offer an evaluation of your designs and provide a workable solution.

  • OEM requires are accepted, We can deliver conceptual drawings to support your plans.

  • As manufacture ,we got the competitive price and we can ensure the shortest delivery time.

  • Factory located in mainland of China, you are welcome to visit and we will accompany with you.

  • Our factory has established for 17 years and got ISO9001 quality certificate, High quality can be ensured.
