Ornamental Railings

Share to:

Quantity:

Introduction

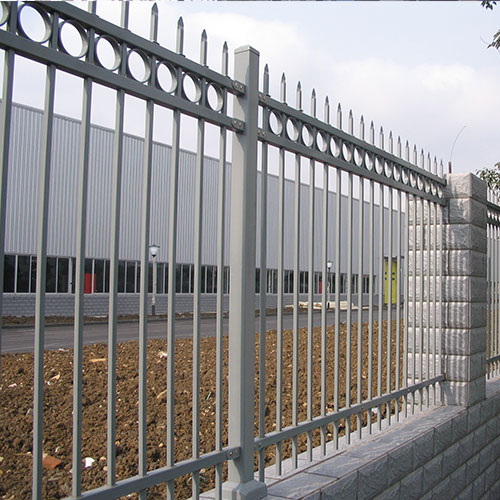

Ornamental-Railings1

Ornamental railings also named ornamental iron railings, the galvanized tube pickets welded to the horizontal rails, common designs are three or four rails, with rings, arch or spear top. Wrought iron railings are treated with high adhesiveness electrostatic spraying polyester coating, therefore, ornamental railings are anti-acid and anti-alkali in the outdoor environment and prolong life time.

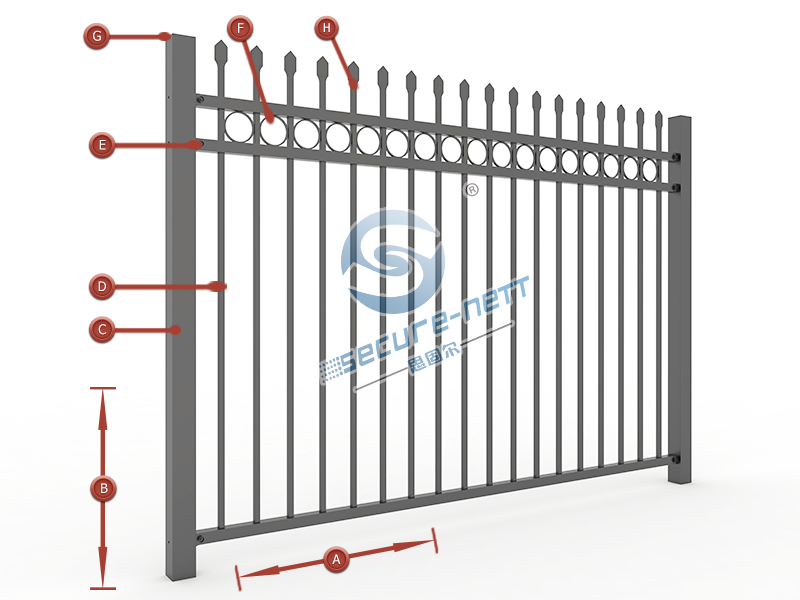

Ornamental-Railings2

A.  WIDTH: 2000mm / 2500mm / 3000mm

B.  HEIGHT: 1200mm / 1400mm / 1600mm / 1800mm / 2000mm / 2200mm

C.  POST SIZE: 50mm*50mm / 60mm*60mm / 75mm*75mm(Square Post)

D.  PICKET SIZE: 20mm*20mm / 25mm*25mm / 30mm*30mm

E.  HORIZONTAL RAIL: 40mm*40mm / 50mm*50mm / 60mm*60mm

F.  ORNAMENTAL PART: Cycle Style

G.  POST CAP: Metal Cap / Anti-UV PP Plastic Cap

H.  SURFACE:Pre Hot Dipped Galvanized (270/m²) Galvanized + PVC Coated (All colors in Ral)

Features


 Diversified Style

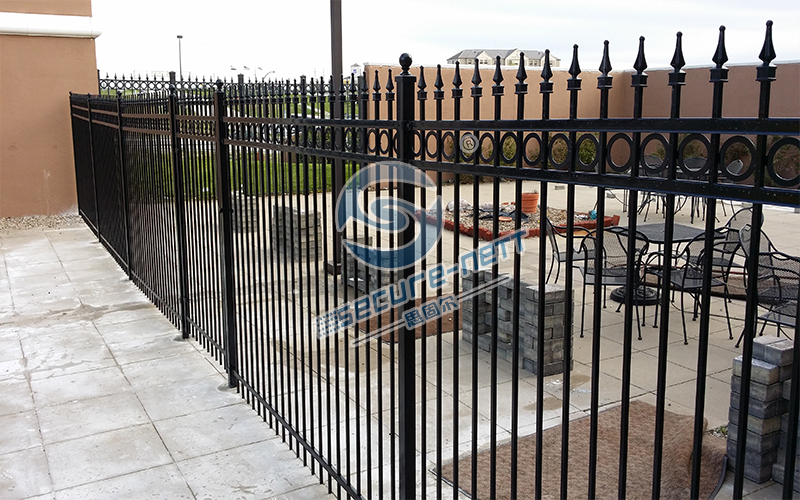

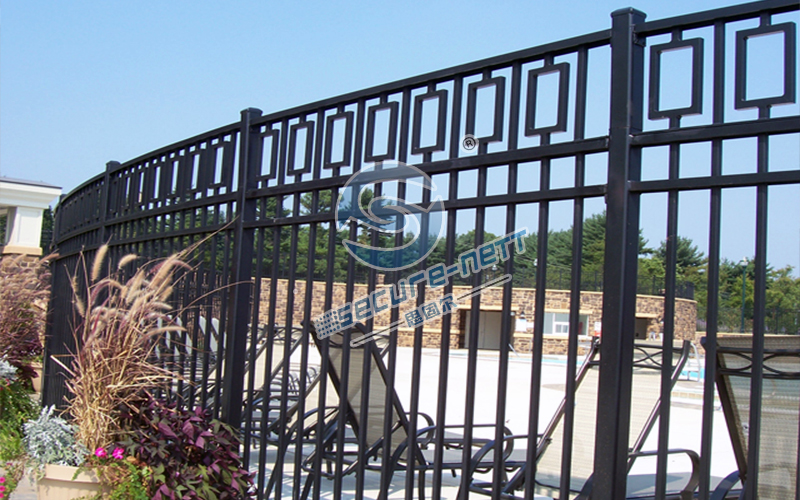

 Ornamental Railings Diversified style

Ornamental Railings Diversified style

The ornamental railings has a unique shape that can be added to the top or bottom of the round or other style accessories according to the customer's needs.These decorative accessories also increase the stability of the railing. The cost of the railing according to the shape.


 Quality Recognition

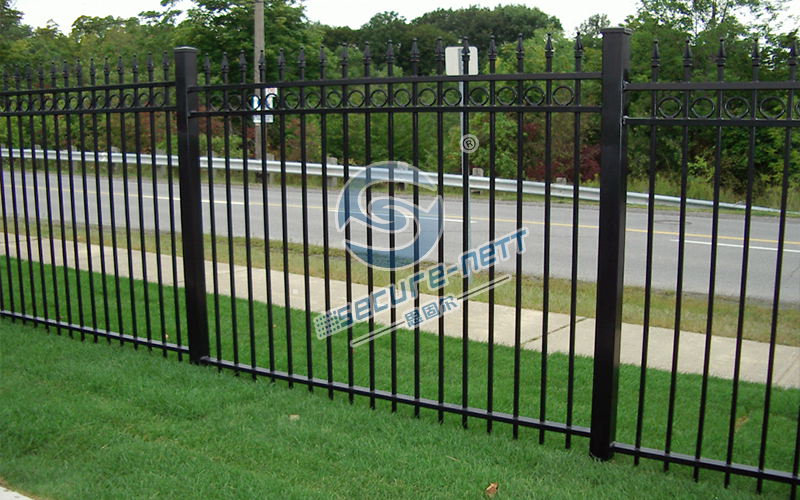

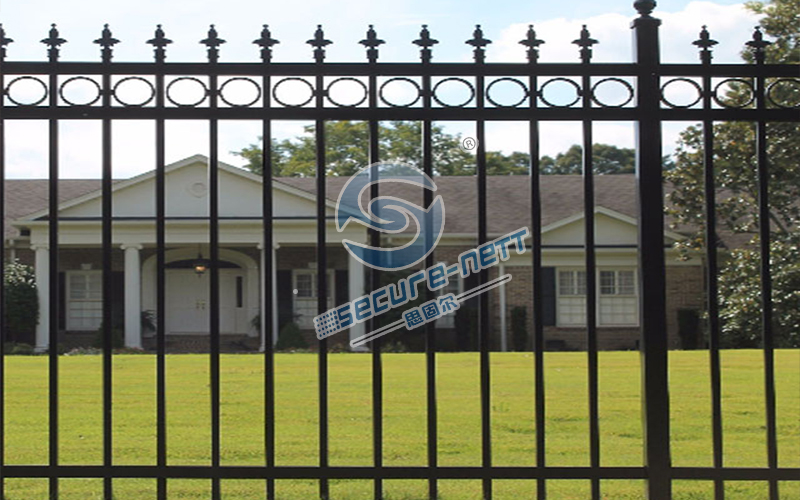

 Ornamental Railings Quality Recognition

Ornamental Railings Quality Recognition

Most villa areas use Ornamental railings steel. Because it has a good appearance, it can decorate the community well. At the same time, it has excellent protection properties that make the Ornamental railings popular in the middle&high end market.

Application

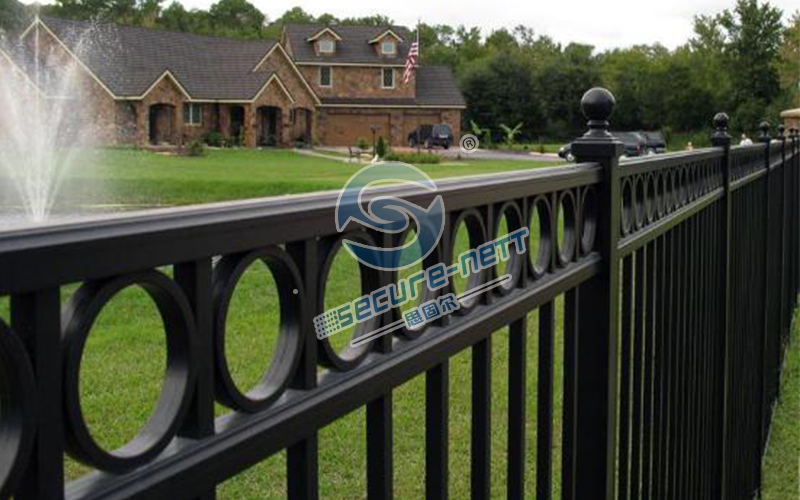

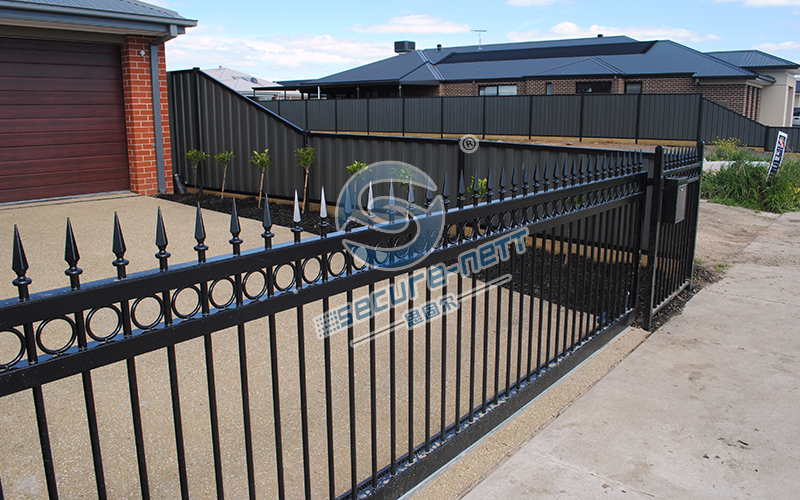

Ornamental Railings For Private Area

Ornamental Railings For Private Area

Ornamental Railings For Private Area

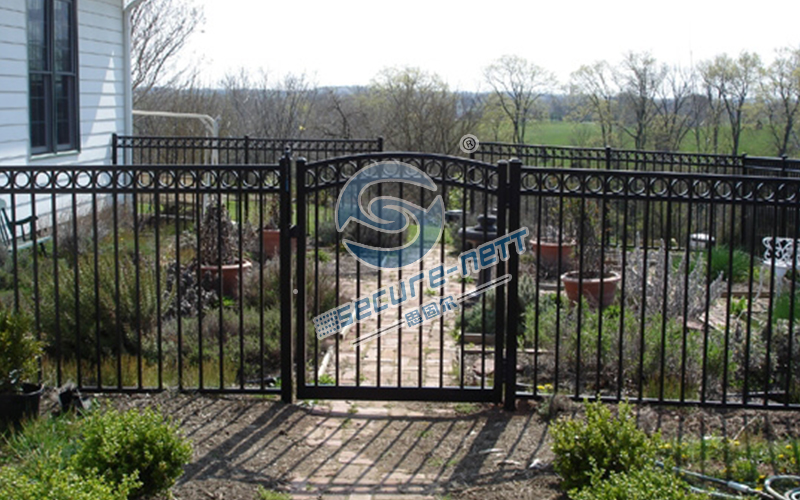

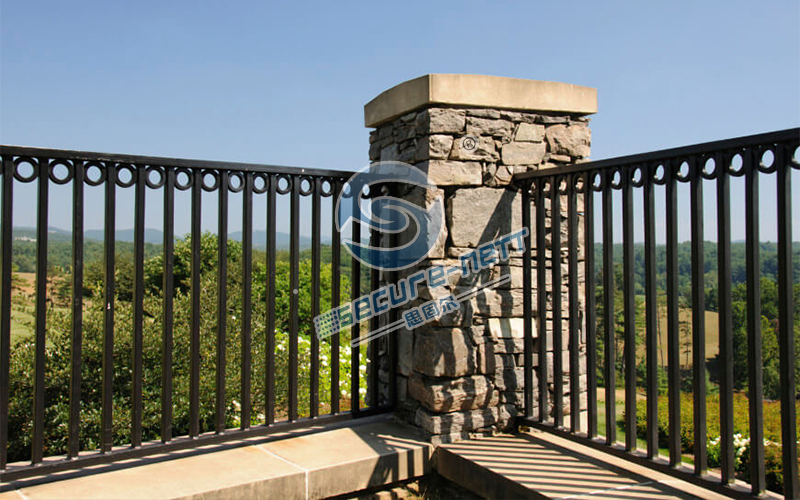

Ornamental Railings For Backyard

Ornamental Railings For Backyard

Ornamental Railings For Backyard

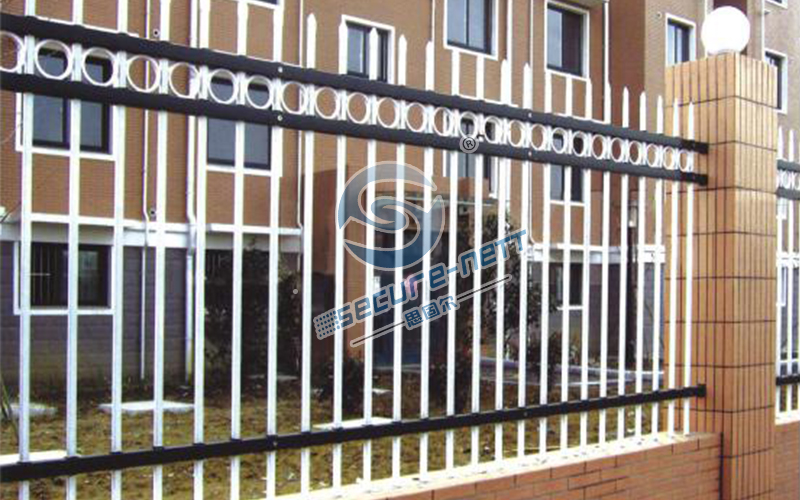

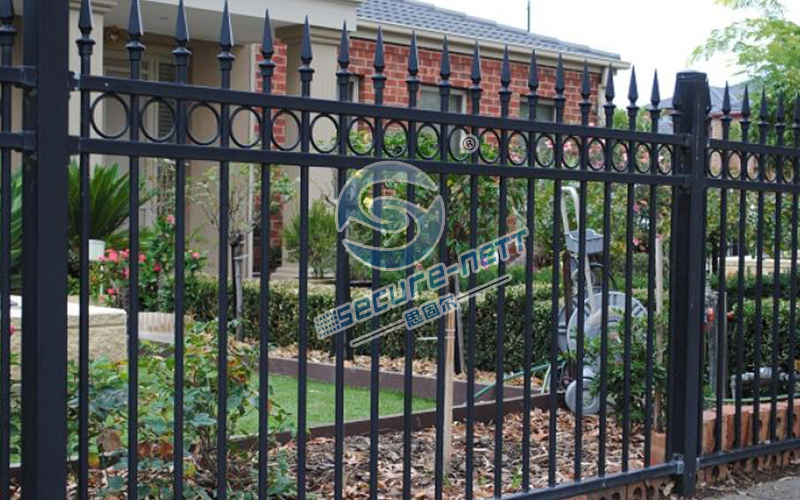

Ornamental Railings For Residential Area

Ornamental Railings For Residential Area

Ornamental Railings For Residential Area

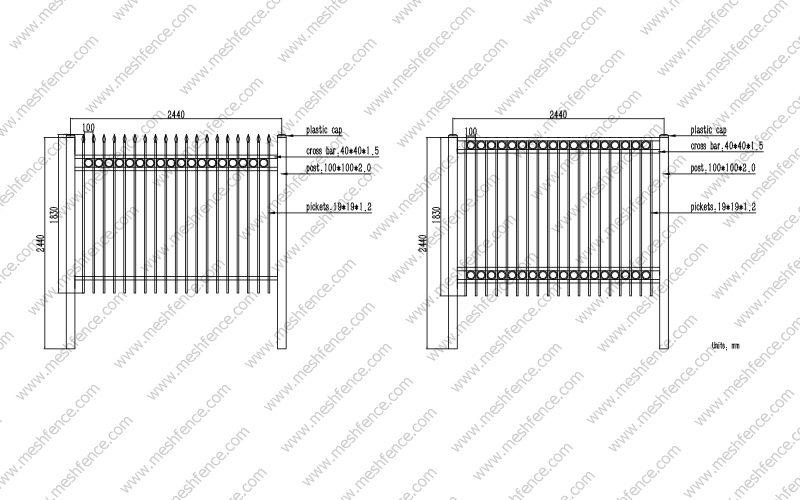

  Conceptual Drawings

Ornamental Railings Conceptual Drawings

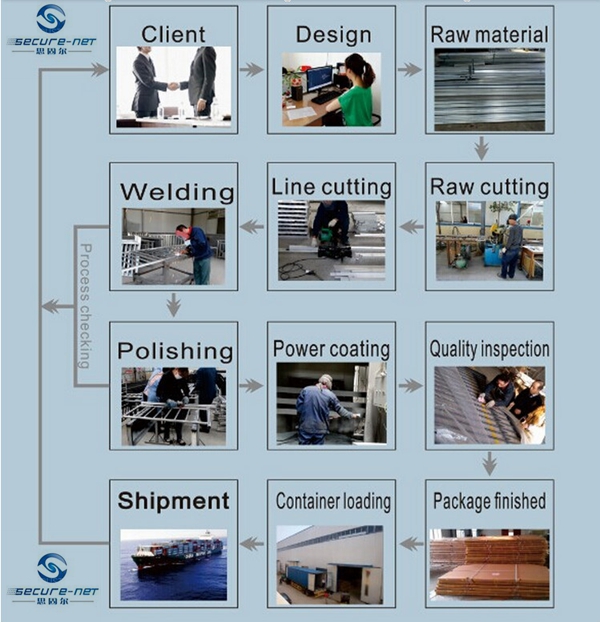

Product Process

Ornamental Railings Products process:
Galvanized pipe cutting;

spear pressing;

tube hole punching (punching holes for vertical bar;

punching of horizontal bar; punching holes of post);

welding;

washing;

surface treatment;

packing;

installation.

1.   First cut the steel or aluminum tube into the required length
2.   Press spear tops and weld the ornamental part
3.   Punching holes of steel tubes
4.  Use the mould to fix the cut tube then weld the rail and pickets.

5.  Washing / Surface Cleaning: The workers first use the small polish machine to polish the welding points one by one. After finished all the welding,using the big polish machine (steel sand ) to wash the oil.

6.  Surface Treatment: Then finish the zinc plating. The last surface treatment can be hot dip zinc plating or zinc plating plus power coating.


Our Service

  • Free sample is available ,specifications based on your require.

  • CE .SGS or other Certifications can be provided based on your require.

    As engineers we offer an evaluation of your designs and provide a workable solution.

  • OEM requires are accepted, We can deliver conceptual drawings to support your plans.

  • As manufacture ,we got the competitive price and we can ensure the shortest delivery time.

  • Factory located in mainland of China, you are welcome to visit and we will accompany with you.

  • Our factory has established for 17 years and got ISO9001 quality certificate, High quality can be ensured.
