Introduction

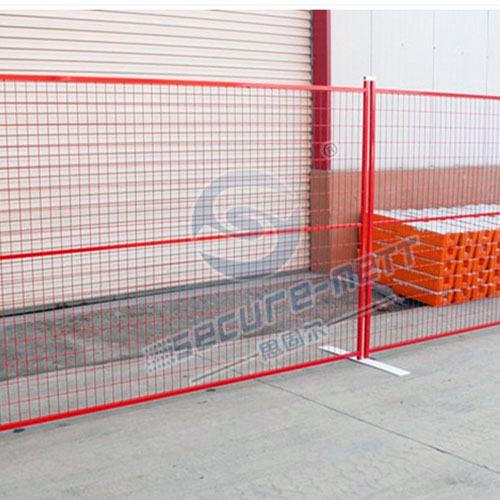

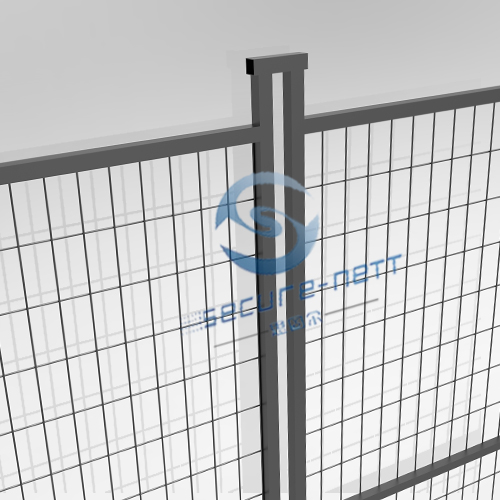

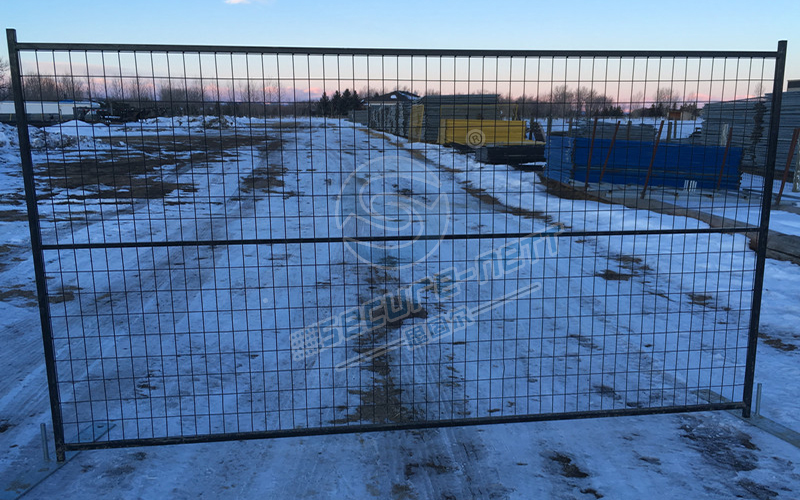

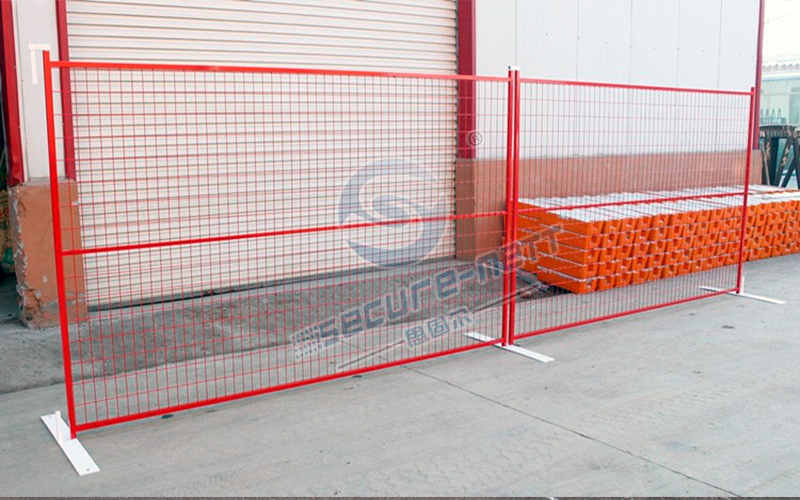

Canada temporary fencing is also known as the simple base mobile guardrail. This kind of temporary fence is made of wire mesh panel with frame and two bases, the wire mesh panel is fixed by two bases, the thickness of base is 5-7mm. The installation process is simple, and it can be easily removed and moved for specific needs.The style of temporary fence is very popular in Canada, USA, Europe markets for many years.
A. WIDTH: 2000mm / 2500mm / 3000mm
B. HEIGHT: 1500mm / 1800mm / 2000mm / 2200mm / 2400mm
C. FRAME DIAMETER: φ32mm / 38mm / 42mm
D. CROSSBEAM DIAMETER:φ32mm / 38mm / 42mm
E. WIRE THICKNESS: φ3.0mm / 3.5mm / 4.0mm / 5.0mm
F. MESH SIZE: 100m*50mm / 150mm*50mm / 200mm*50mm
G. CLAMP: Metal Clamp
H. SURFACE: Pre Hot Dipped Galvanized (100 / 200 / 250 / 280g/m²) Galvanized + PVC Coated (All colors in Ral)
I. BASE FOOT: Anti-UV PP Plastic Base Foot / Metal Base Foot
Features

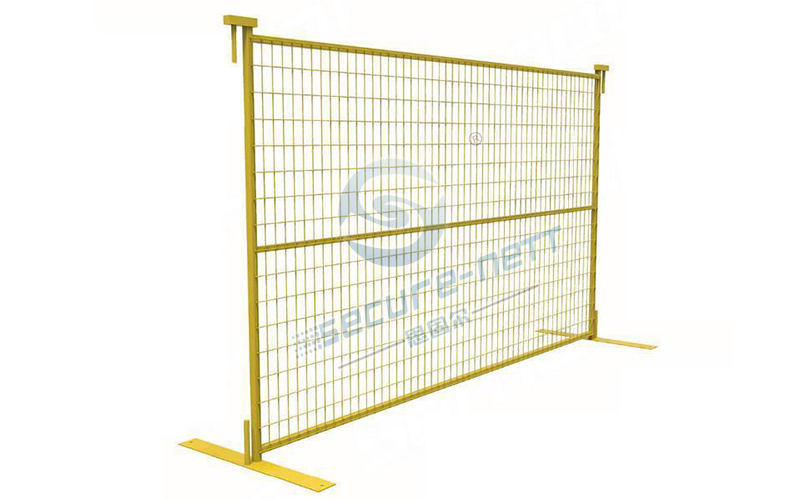

Great Flexibility
It is easy to move the Canada temporary fencing by using a clip to connect the panels of each temporary fence. Temporary fence panels are widely used on construction sites to enclose areas under construction.

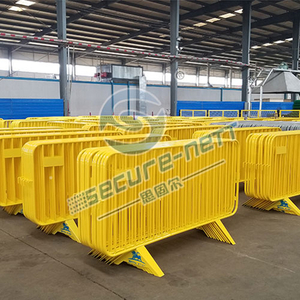

Very similar to crowd control obstacles, the Canada temporary fence panel is also very adaptable to the terrain. You can choose a Canada temporary fencing without worrying about the terrain.

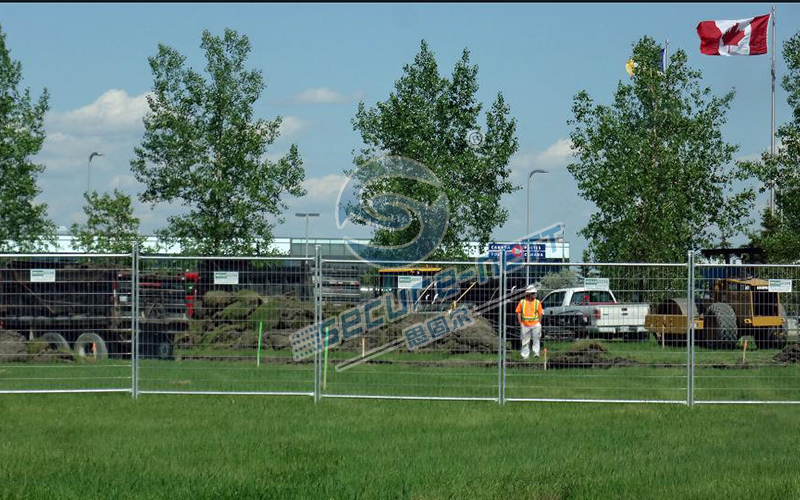

Variety Situation

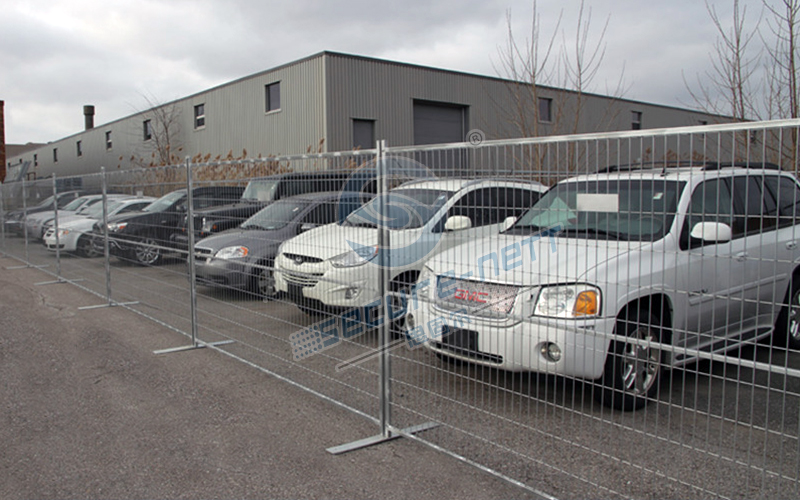

Also known as portable fences, safety fences or building fences; our temporary fences are quick and easy to move, and are ideal for restricting access to or accommodating a location, usually on construction sites, public events, dog runs, or any crowd control.

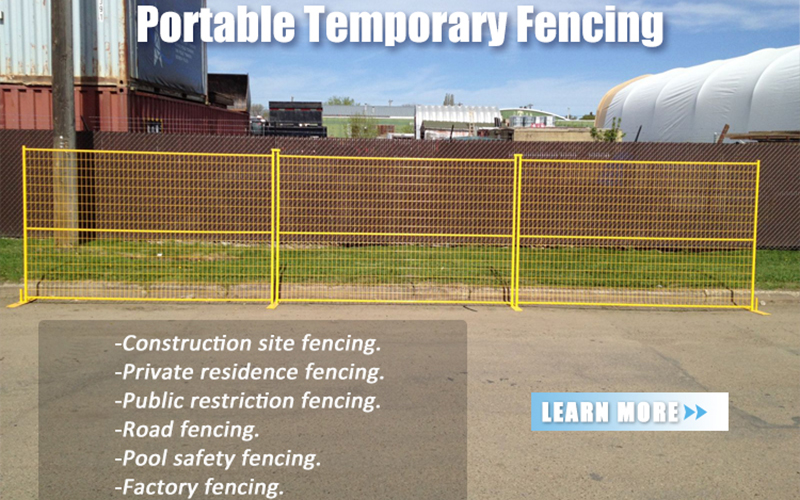

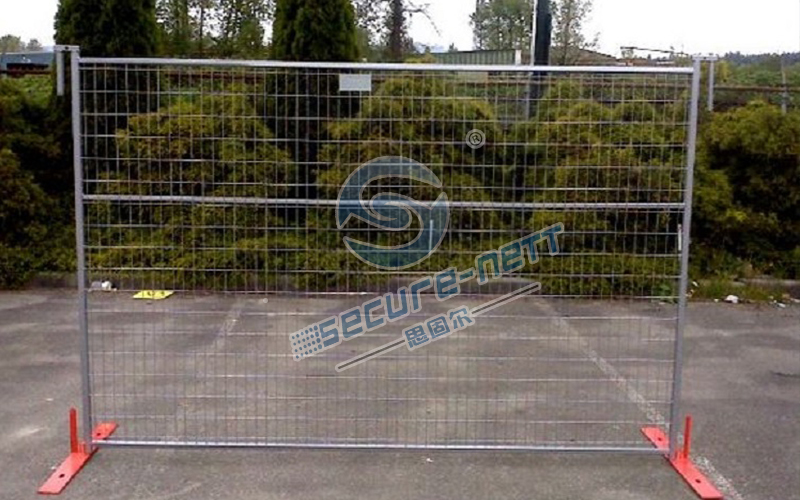

Application

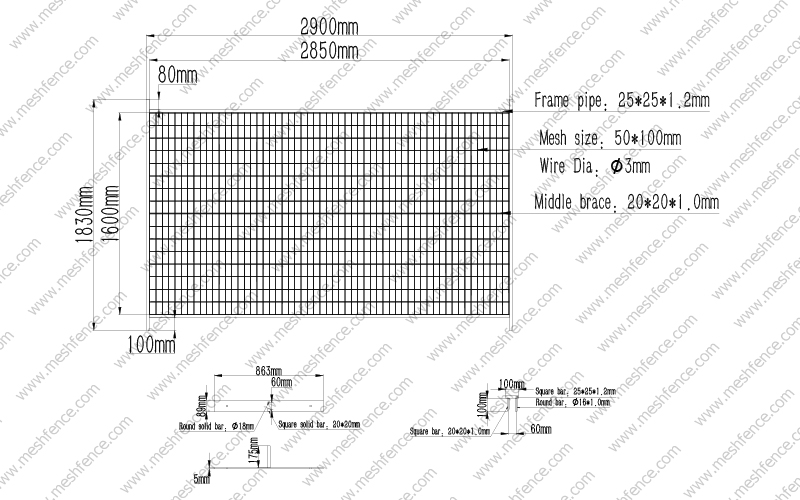

Conceptual Drawings
Product Process
Firstly the low-carbon steel wire with a galvanizing amount of 270g/m2 is used for straightening and cutting, and the machine is used for integral welding the fence panel to ensure that the flatness of the mesh is fully welded.
The frame structure is made of high-quality steel round tube, cut into the length as required , machined with screw holes, and welded with panel.
Finally products are treated by electrostatic spraying powder coating to corrode in out door environment. Products can be ensured use for 10 years.

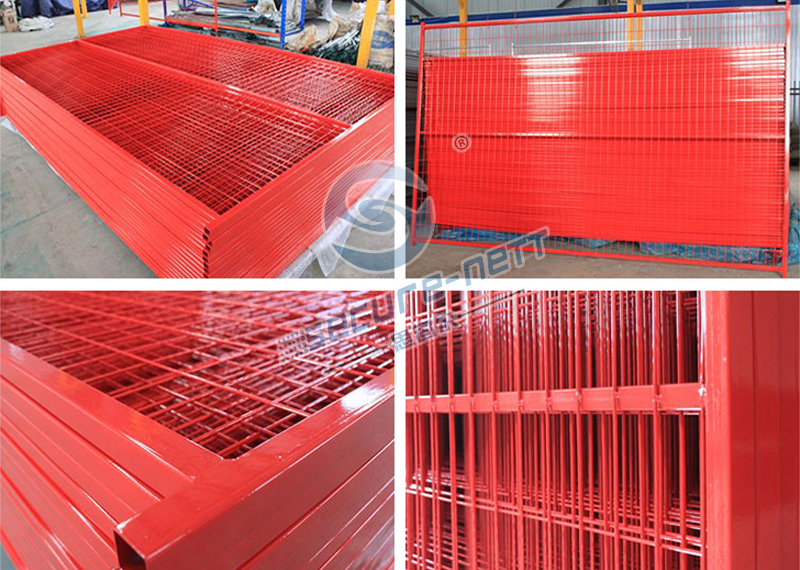

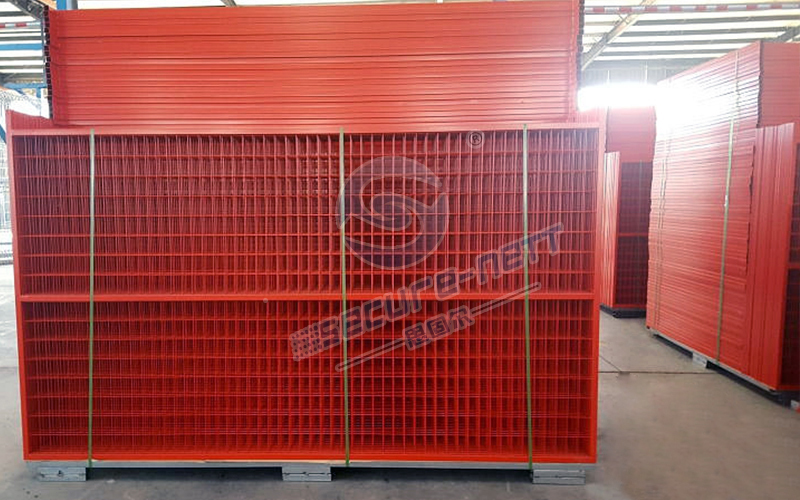

Packing View
Our Service
Free sample is available ,specifications based on your require.
CE .SGS or other Certifications can be provided based on your require.
As engineers we offer an evaluation of your designs and provide a workable solution.
OEM requires are accepted, We can deliver conceptual drawings to support your plans.
As manufacture ,we got the competitive price and we can ensure the shortest delivery time.
Factory located in mainland of China, you are welcome to visit and we will accompany with you.
Our factory has established for 17 years and got ISO9001 quality certificate, High quality can be ensured.
