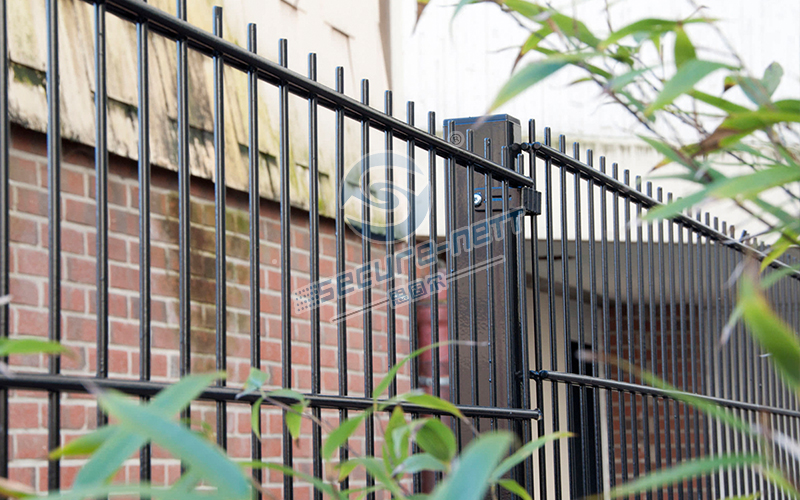

656/868 Double Wire Mesh Fencing

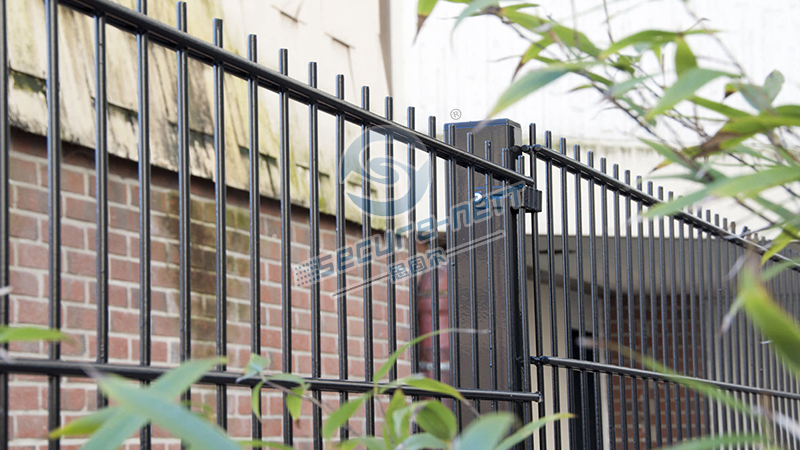

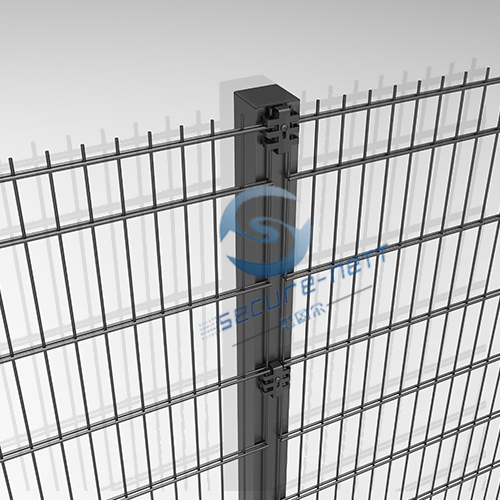

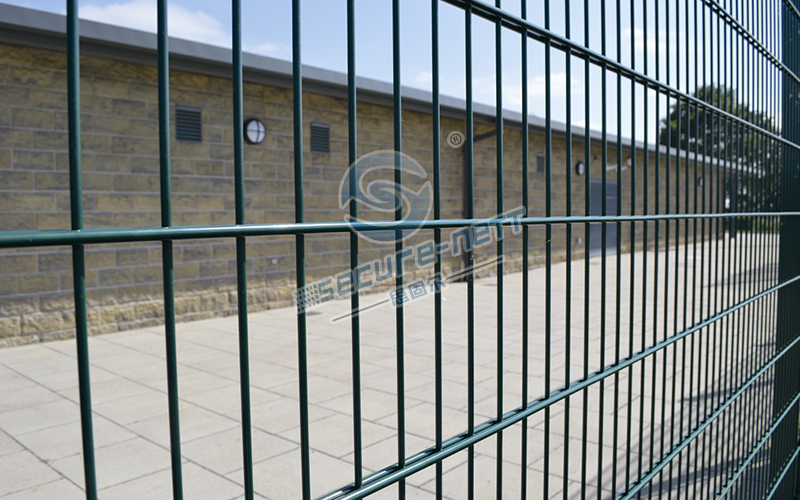

656/868 Double Wire Mesh Fencing As a special reinforced wire mesh fence, there are usually two specifications. No.1:double horizontal wire (8mm diameter )welded to single vertical wire(6mm).No.2: :Double Horizontal wire (diameter 6mm) welded to single vertical wire( diameter 5mm).The double wire mesh fencing special design makes the mesh stronger. It has the same reinforcing effect as the bend in panel. The double wire mesh fence is made of high quality low carbon steel wire and is commonly used as the main fence for school playgrounds and industrial or commercial fences which is requiring a powerful mesh fence system.

Double Wire Mesh Fencing Specifications:

A. HEIGHT: 1230mm / 1430mm / 1630mm / 1830mm / 2030mm / 2230mm

B. WIDTH: 2000mm / 2500mm / 3000mm

C. WIRE THICKNESS: 8mm/6mm/8mm, or 6mm/5mm/6mm

D. MESH SIZE: 200mm*50mm

E. CLAMP: Metal Clamp

F. POST SIZE: 40mm*60mm / 60mm*60mm / 80mm*60mm

G. POST CAP: Metal Cap / Anti-UV PP Plastic Cap

H. SURFACE: Hot Dipped Galvanized (207g/m²)Galvanized + Polyester Powder Coated (All colors in Ral)

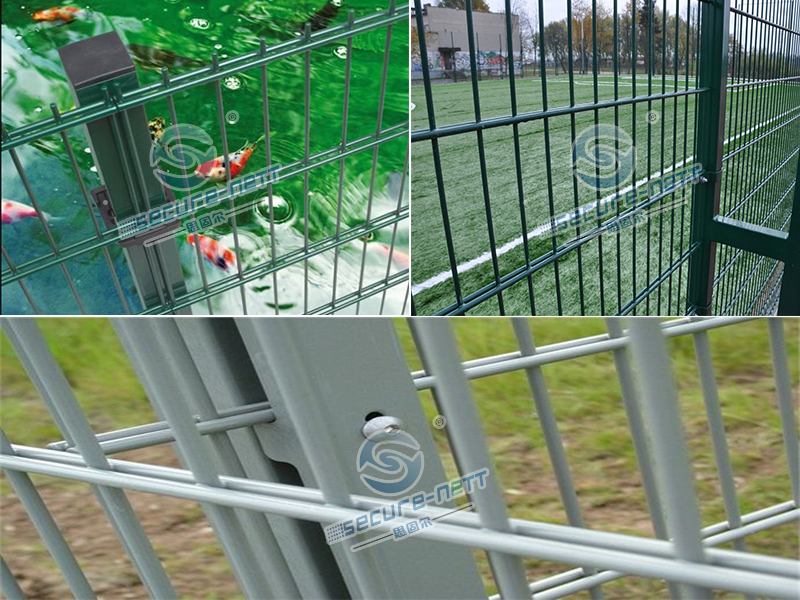

Highly Secure

Double Wire Mesh Fencing In order to make the fence panel stronger, Symmetry design improved damage prevention. Double wire fence is the only one type of fence come with doubled horizontal wires one the panel. Ordinary tools can't easily destroy it .

Easy To Transport

Double wire mesh fencing has symmetrical design keeps the panel flatness. It is not easy to shake during packaging and transportation, and can effectively avoid damage caused during shipping.

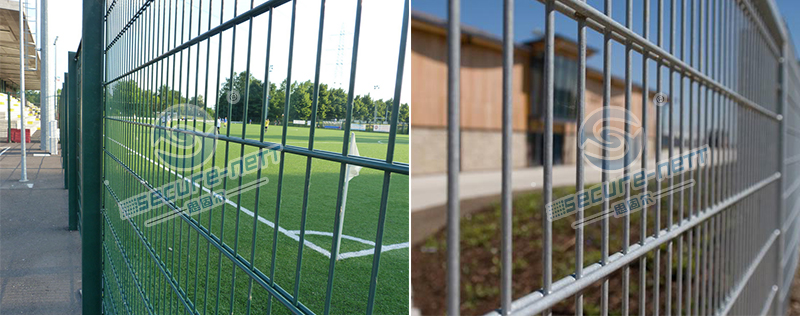

Middle and high-level market

Double wire mesh fencing with higher price than common wire mesh fence because of the high quality.Panel can suit for many different kind of post and connection method. Its very popular in the middle and high-level market. Such as villa and golf course.

Two-line fence panels are used to protect objects with high safety requirements, for example, airports, military warehouses, stadiums, shopping malls, railways. It is also commonly used as a fence wall for industrial, public and administrative buildings, supermarkets, schools, sports, parks and playground facilities.

Double Wire Mesh Fencing

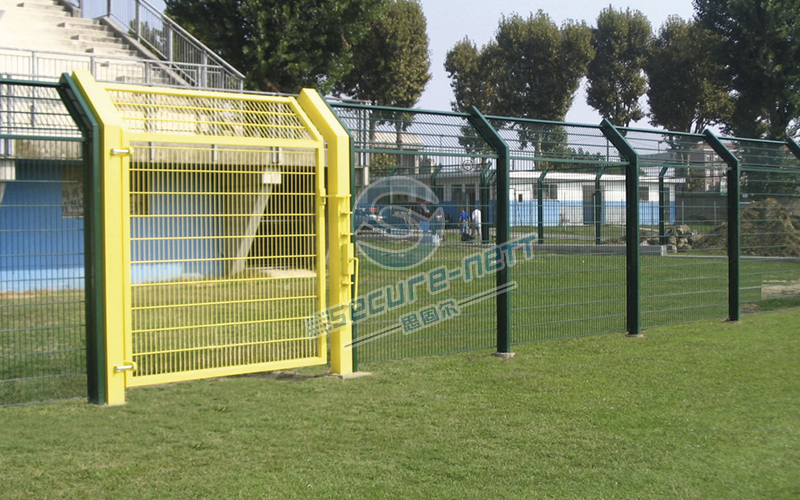

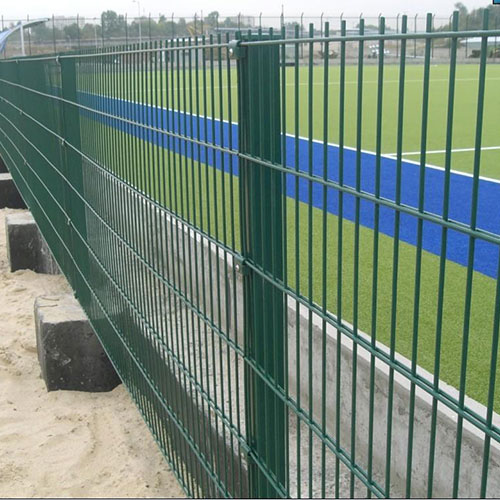

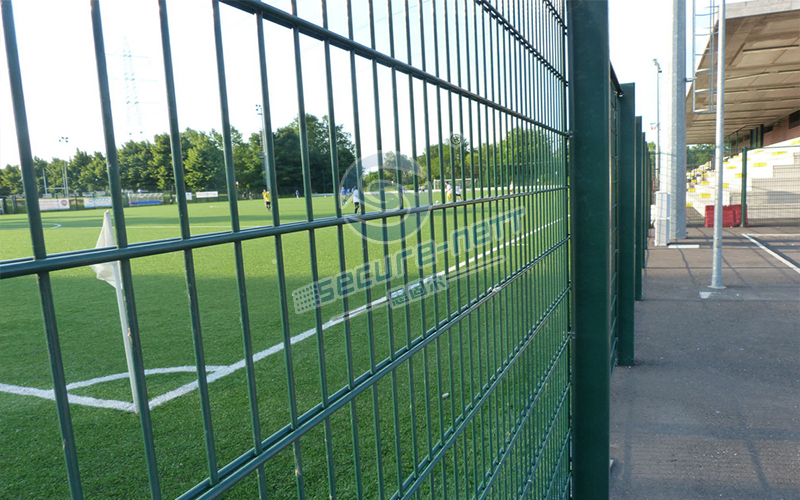

For Sports Playground

Double Wire Mesh Fencing

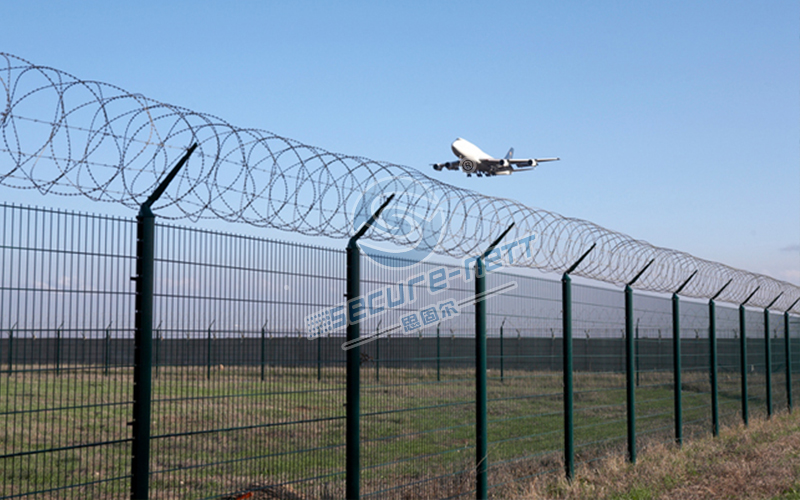

for Airport

Double Wire Mesh Fencing

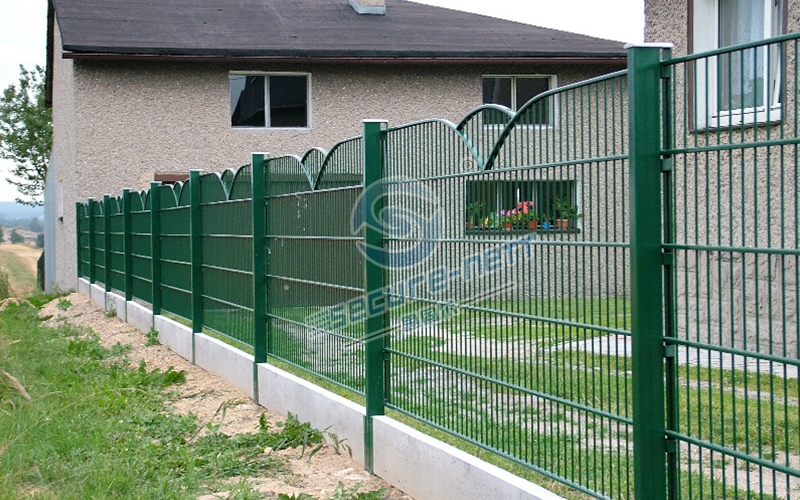

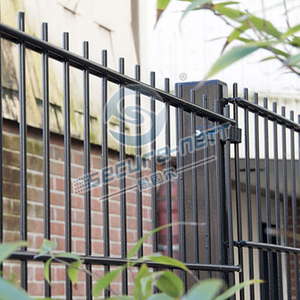

 for Villa

   Double Wire Mesh Fencing

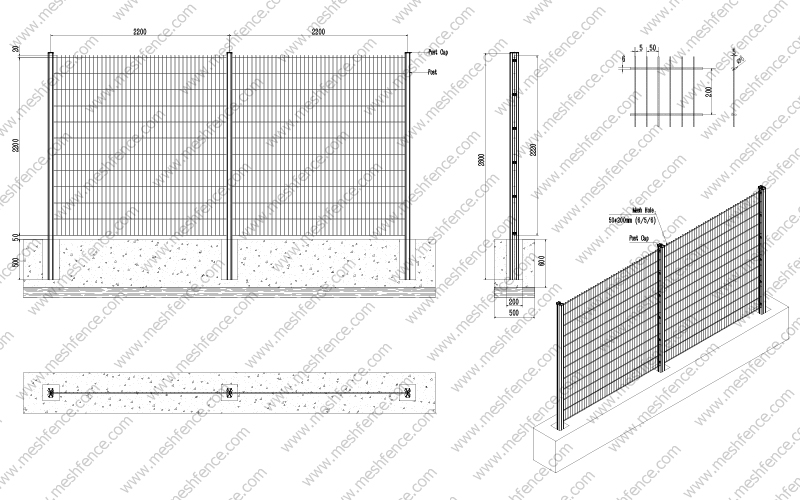

Conceptual Drawings

Firstly  the low-carbon steel wire with a galvanizing amount of 270g/m2 is used for straightening and cutting, and the machine is used for integral welding the fence panel to ensure that the flatness of the mesh is fully welded.

Then the mesh is bent to form a “P “shaped design that is symmetrical at the top and at the bottom.

The column is made of cold-formed steel + high-frequency welding of 270g/m2 galvanized steel, cut into the length as required , machined with screw holes, and polished to remove raw.

Finally  post and panel are treated by electrostatic spraying powder coating to corrode in out door environment. Products can be ensured use for 10 years.

  Double Wire Mesh Fencing

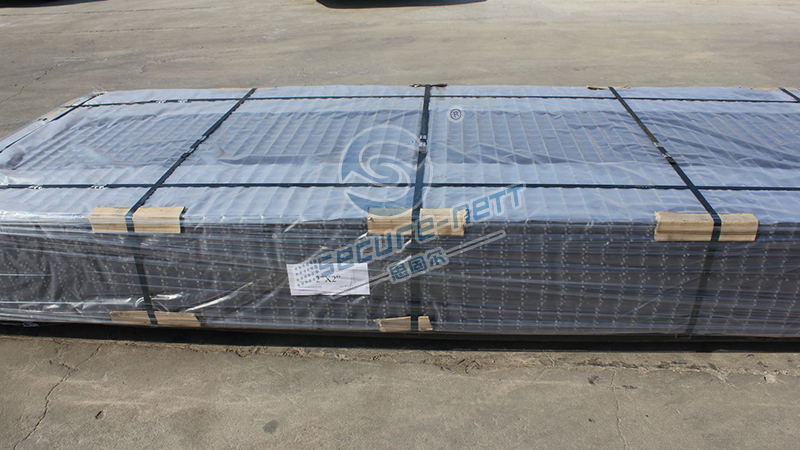

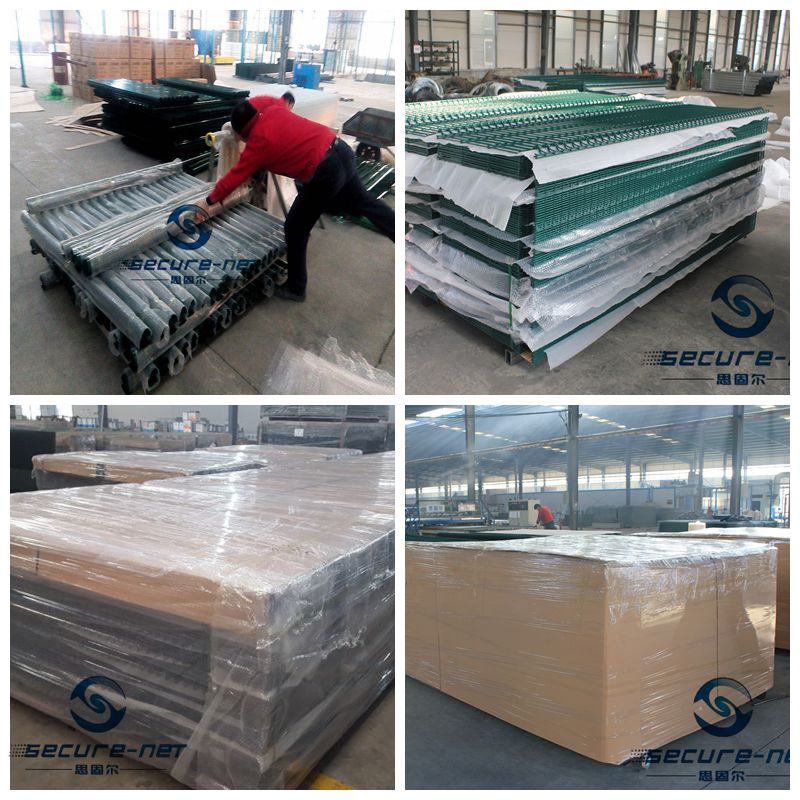

Packing

Double wire mesh panel package in plastic shinkage, then on pallets with 4 corner steel rod to protect the wire mesh panel avoid damage during the shipment.

• Free sample is available ,specifications based on your require.

• CE .SGS or other Certifications can be provided based on your require.

  As engineers we offer an evaluation of your designs and provide a workable solution.

• OEM requires are accepted, We can deliver conceptual drawings to support your plans.

• As manufacture ,we got the competitive price and we can ensure the shortest delivery time.

• Factory located in mainland of China, you are welcome to visit and we will accompany with you.

• Our factory has established for 17 years and got ISO9001 quality certificate, High quality can be ensured.
