Introduction

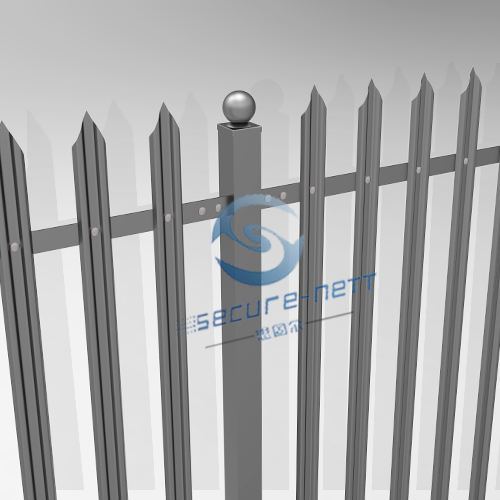

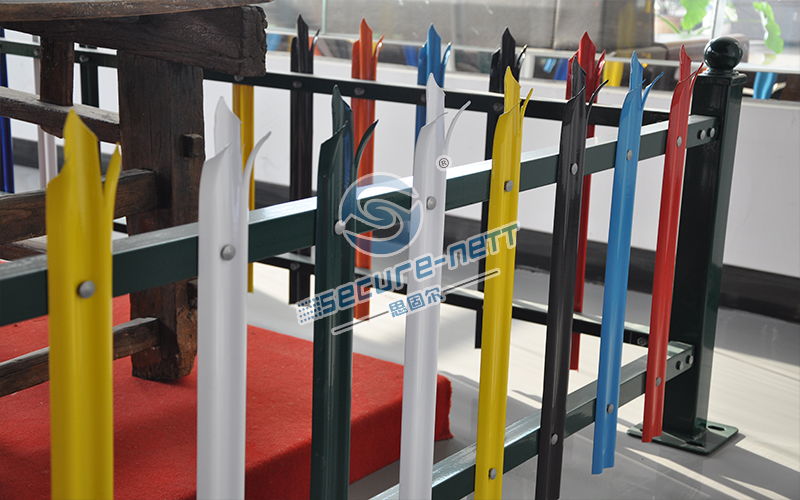

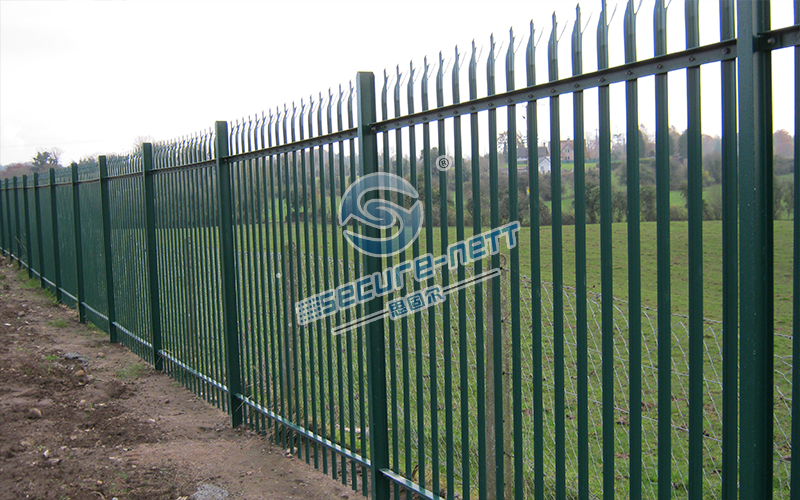

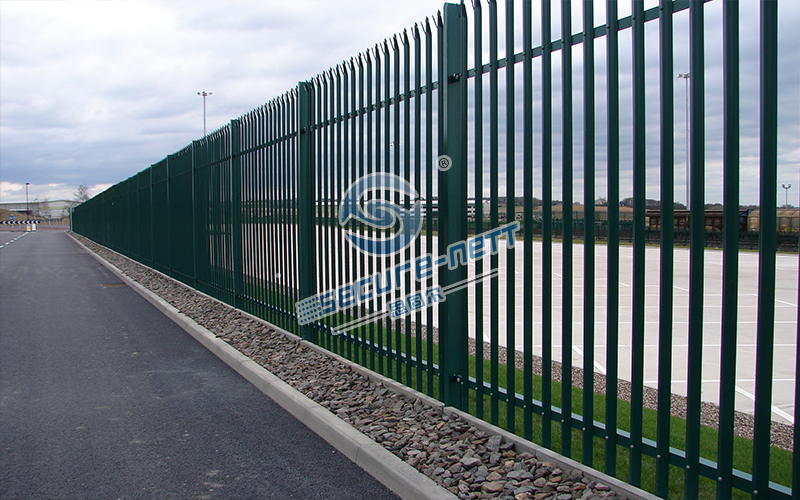

Palisade Fencing is made of galvanized steel, with powder coating in a range of standard colors, palisade fencing which is popular in Europe, because of its high damage resistance and beautiful appearance, palisade fence is especially popular for schools and industrial sites.

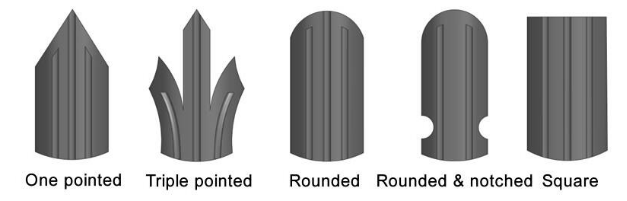

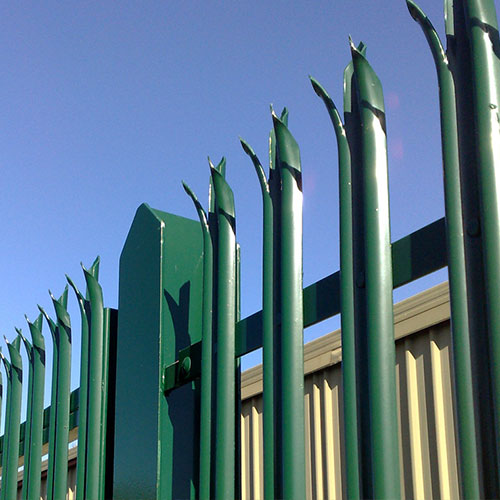

Palisade fencing uses two horizontal rails, general thickness of rail is 2.0mm, is available with different head styles such as triple pointed top, single pointed top, Rounded,r Round & Notch top and Square top.
The palisade fence system is beautiful and practical, without mesh and frame structure, which makes transportation and installation very easy. The system is suitable for different project scenarios. Some characteristics of the steel fence system are its attractiveness and durability, wide vision, various colors, high strength and good rigidity.

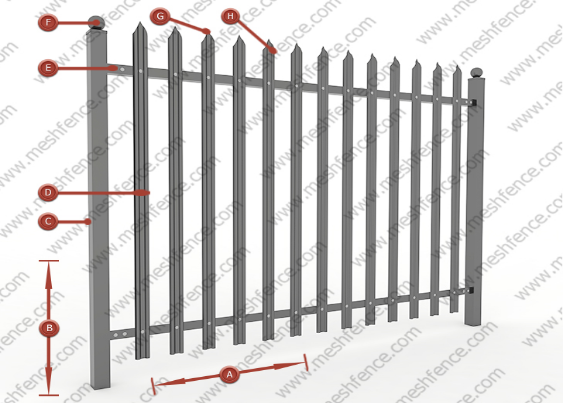

A. WIDTH: 2750mm / 3050mm
B. HEIGHT: 1200mm / 1400mm / 1600mm / 1800mm / 2000mm / 2200mm / 2400m
C. PALE TYPE: W-profile / D-profile / Angle Steel
D. PALE TOP: Single Pointed / Triple Pointed / Round Top / Square Top
E. PALE THICKNESS: 1.5mm / 2.0mm / 2.5mm / 3.0mm
F. HORIZONTAL RAIL: Angle Steel 40mm*40mm*4.0mm / 45mm*45mm*4.5mm / 50mm*50mm*5.0mm
G. POST: 100mm*55mm / 102mm*44mm(IPE Post)
H. CLAMP: Fish Plate
I. SURFACE: Hot Dipped Galvanized (207g/m²)Electric Galvanized + Polyester Powder Coated (All colors in Ral)
Features

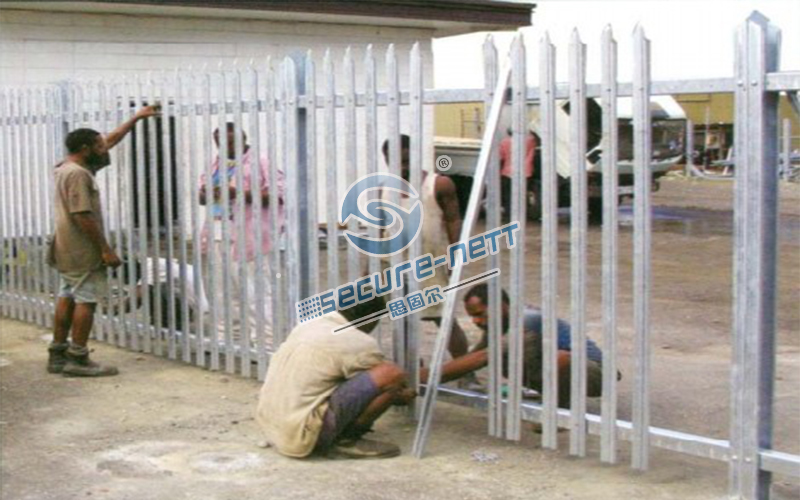

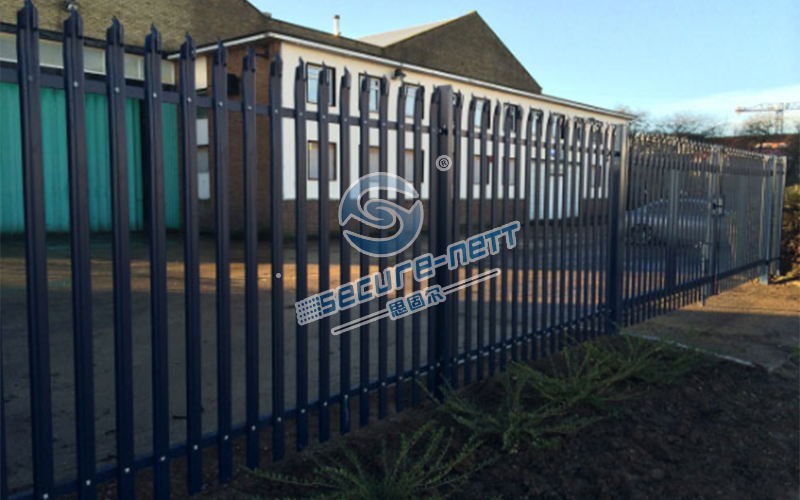

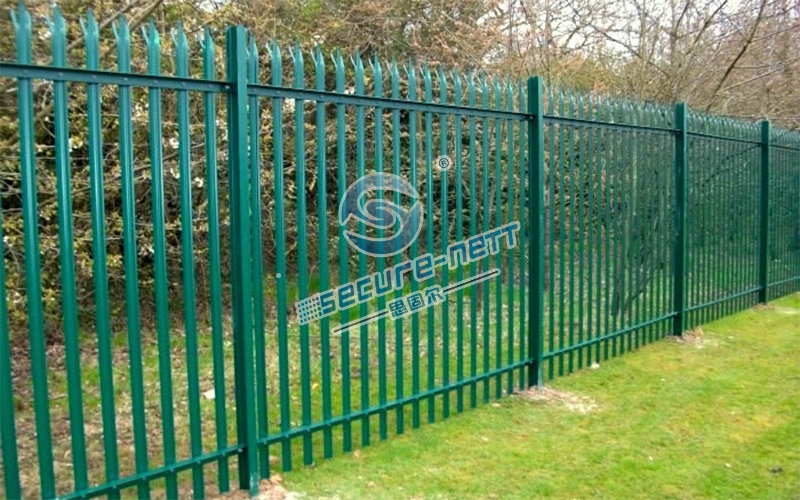

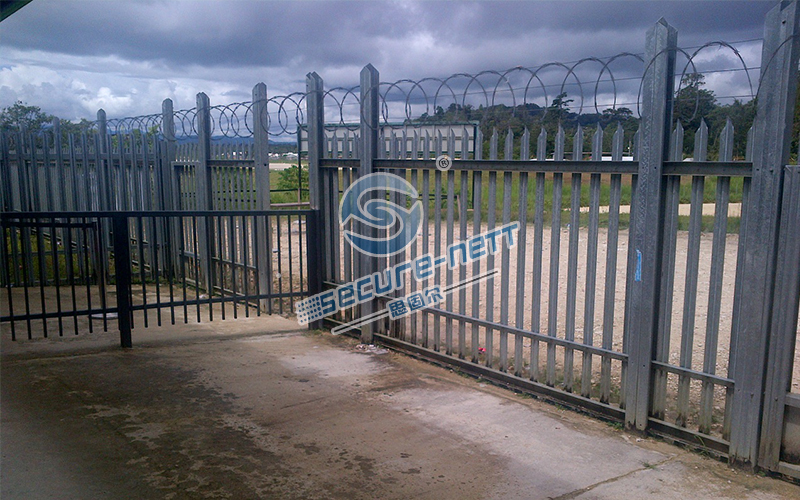

High Security
Palisade fencing has super high protection, and the raw material is made of high-strength steel plate, which has more resistance than ordinary mesh. High corrosion resistance also the advantage of Palisade fence. At the same time, the price is also higher than the ordinary mesh. If you want to find a strong fence panel, palisade fence must be a great choice.

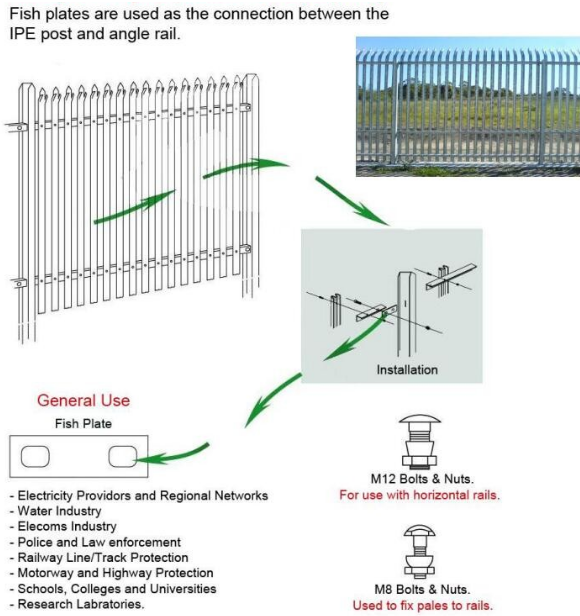

Easy to Transport & Install
Palisade Fencing without mesh and frame structure, palisade fence makes transportation and installation very easy. Generally, the palisade fencing is bury the post into the ground and can be fixed by using anti-theft screws one by one to ensure the stability and beauty of the mesh. At the same time, the palisade fencing can be reused and has a high recycling value.
Application

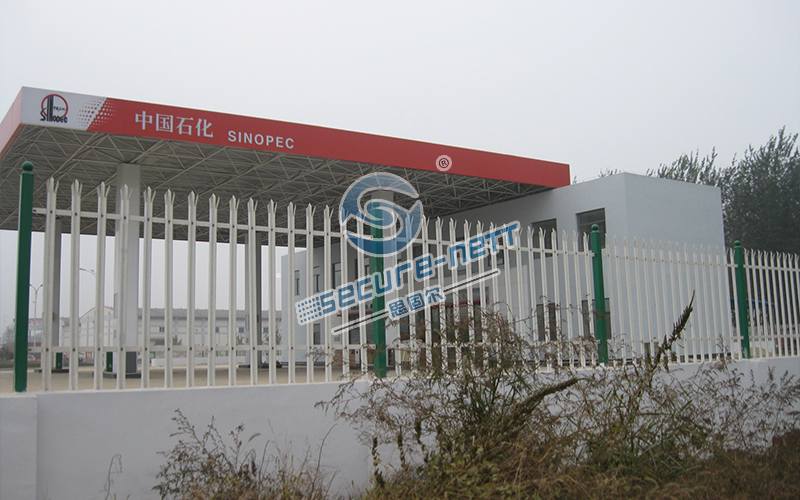

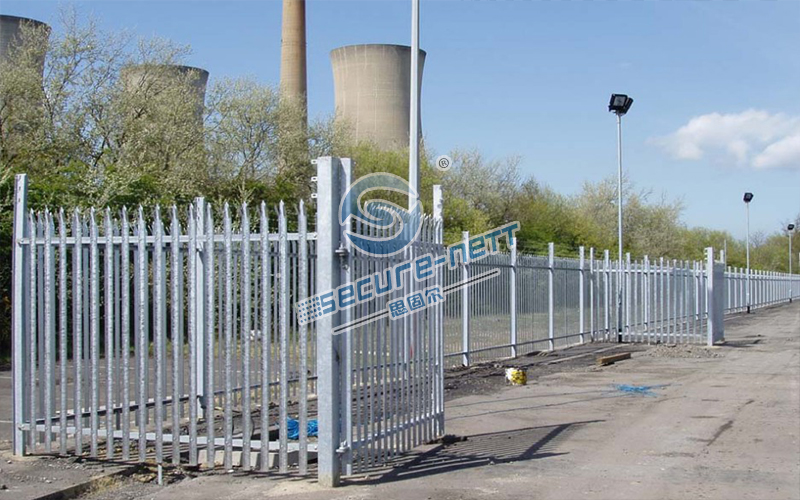

Palisade Fencing For Factory

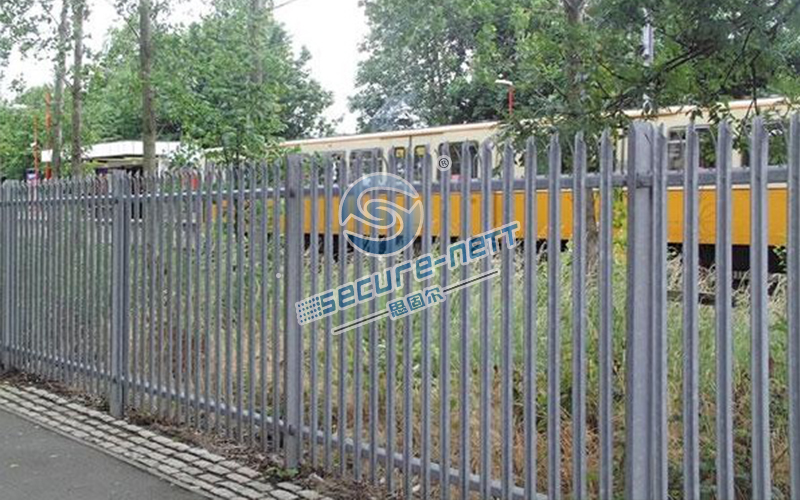

Palisade Fencing For Railway

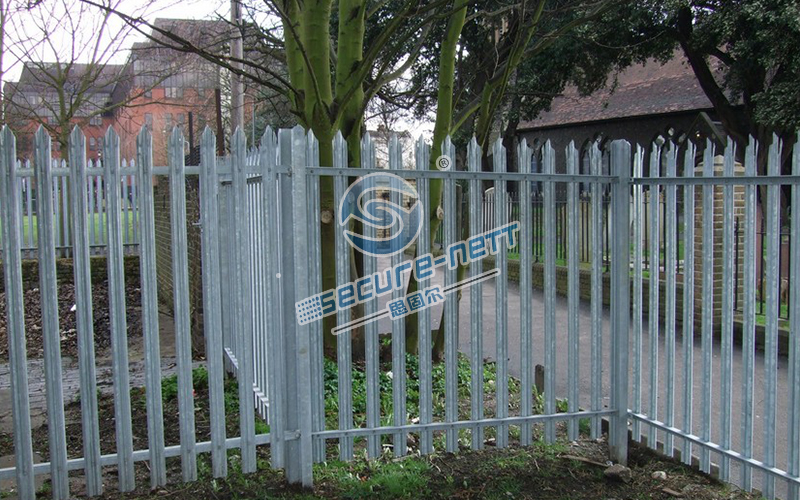

Palisade Fencing For Private Area
Product Process
The Plate is formed into a W or D plate with high-quality steel plates, then cut to the required length, machined with screw holes, and formed head style on the top, followed by Hot Dipped Galvanized (207g/m²)Electric Galvanized + Polyester Powder Coated (All colors in Ral)
The Post is made of cold-formed steel + high-frequency welding of 270g/m2 galvanized steel, cut into the length as required , machined with screw holes, and polished to remove raw.

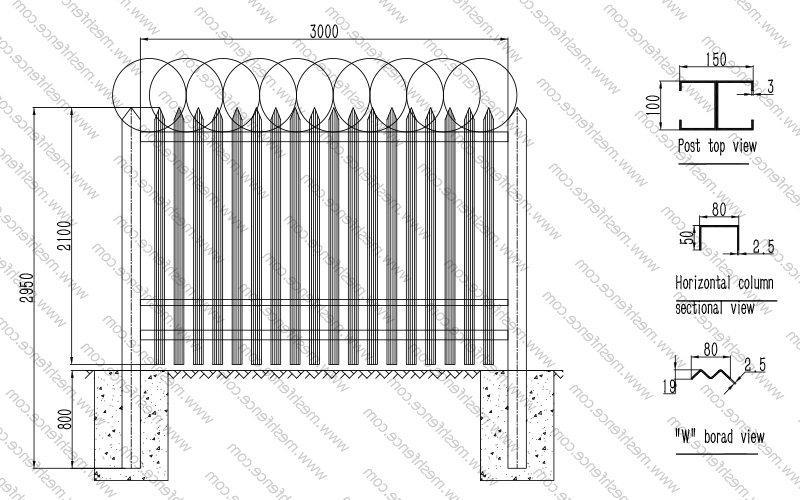

Conceptual Drawings
Our Service
Free sample is available ,specifications based on your require.
OEM requires are accepted, We can deliver conceptual drawings to support your plans.
As engineers we offer an evaluation of your designs and provide a workable solution.
Factory located in mainland of China, you are welcome to visit and we will accompany with you.
CE .SGS or other Certifications can be provided based on your require.
Our factory has established for 17 years and got ISO9001 quality certificate, High quality can be ensured.
As manufacture ,we got the competitive price and we can ensure the shortest delivery time.
