358 Security Fencing

Share to:

358 refers to the imperial measurements: 3” x 0.5” x 8 Ga, 358 security fence is superior quality powder coated, high-tensile steel mesh with the mesh size of 76.2mm x 12.7mm, the strong wire diameter is 4mm.

Quantity:

Introduction

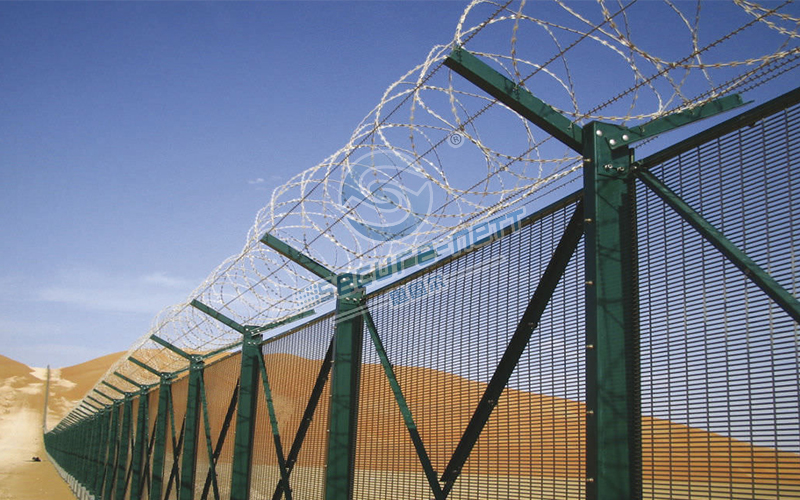

358 Security Fence

358 Security Fencing is superior quality powder coated, high-tensile steel mesh with the mesh size of 76.2mm x 12.7mm, the strong wire diameter is 4mm.

358 Anti-climb Fencing is one of the prison fences, which has excellent material, uniform mesh, smooth mesh surface, beautiful appearance, thick wire diameter and long corrosion resistance. 358 Security Fencing Because of its small apertures, which can prevent objects climbing from outside, and is particularly effective against the hand cutting tools. The post is connected by a round pipe or a square pipe and a mesh through an anti-theft bolt.

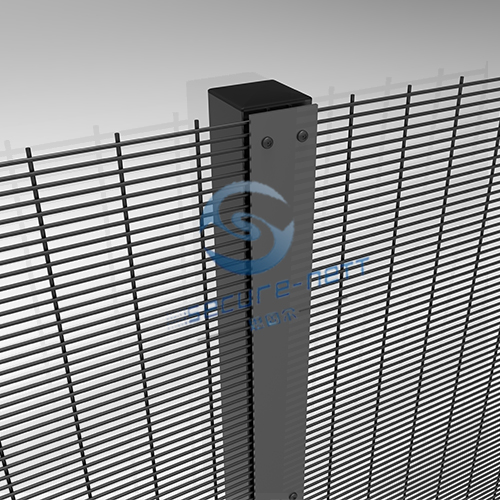

358 Security Fence

A. WIDTH: 1500mm / 2000mm / 2500mm/3000mm

B. HEIGHT:: 1200mm / 1400mm / 1600mm / 1800mm / 2000mm / 2200mm

C. POST: Square Post

D. WIRE DIAMETER:3.0mm / 3.5mm/4.0mm /4.5mm

E. MESH HOLE:76.2mm*12.7mm / 75.0mm*12.5mm / 100mm*15mm

F. CLAMP: Metal Clamp

G. POST CAP:Metal Cap / Anti-UV Plastic Cap

H. SURFACE: Hot Dipped Galvanized (270g/m²) / Galvanized + Polyester Powder Coated (All colors in Ral)

Features

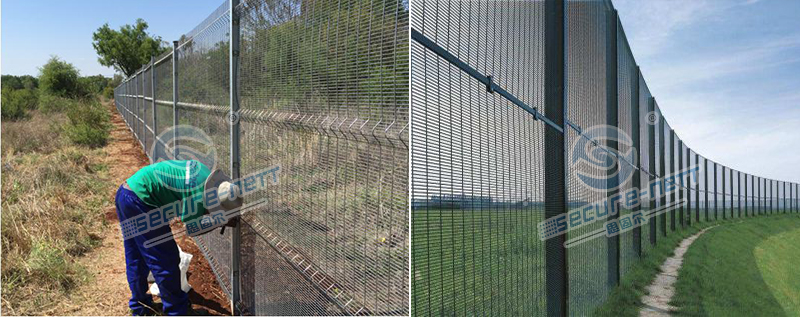

 High Security

358 Security Fencing High security

The 358 security fencing is famous for its high safety. This small mesh (76.2mm * 12.7mm) can effectively block finger or tool penetration, which is safer than other ordinary guardrails. 358 nets Purse Seine is widely used in military fields or prisons because of its high security.

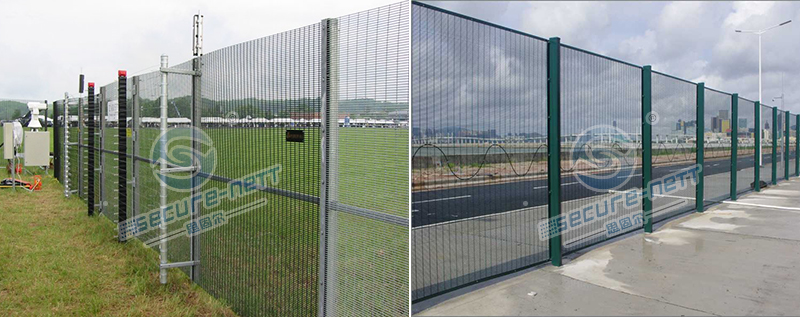

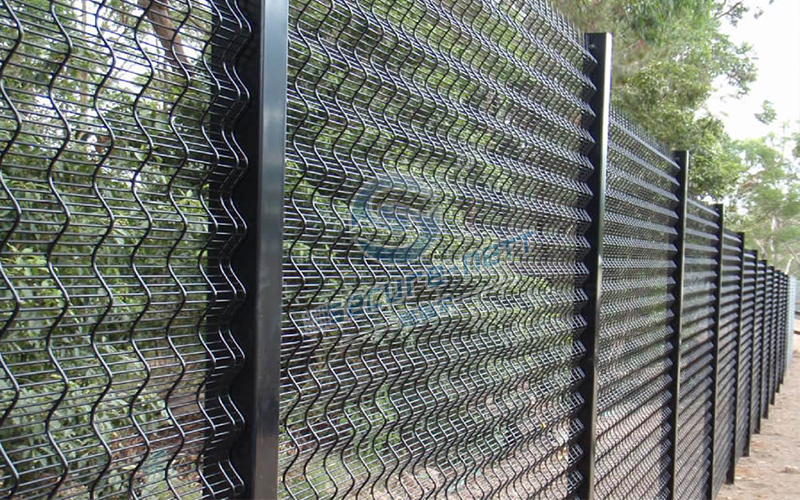

 Anti-Cut&Anti-Climb

Anti-Cut&Anti-Climb

Anti-Cut&Anti-Climb

Because of the special size of the mesh, the general tool cannot cut it. Similarly, it can effectively block climbing. If the top is equipped with a barbed wire or stud, it can improve the protection performance.

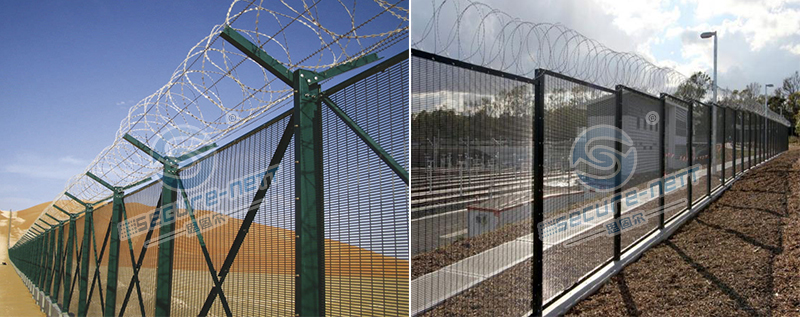

 Secure

The density and weight of the mesh are much higher than other common wire mesh panel, also it can add the barbed wire at the top, the 358 security fence become the best choice for high security applications.

358 Security Fencing Secure

Application

Anti climb fence mainly be used as security fence, roads, railways, protective belts on both sides of bridges, security protection of airports, parks, lawns, zoos, lakes, roads, residential areas in municipal construction, hotels, supermarkets, entertainment venues, etc.

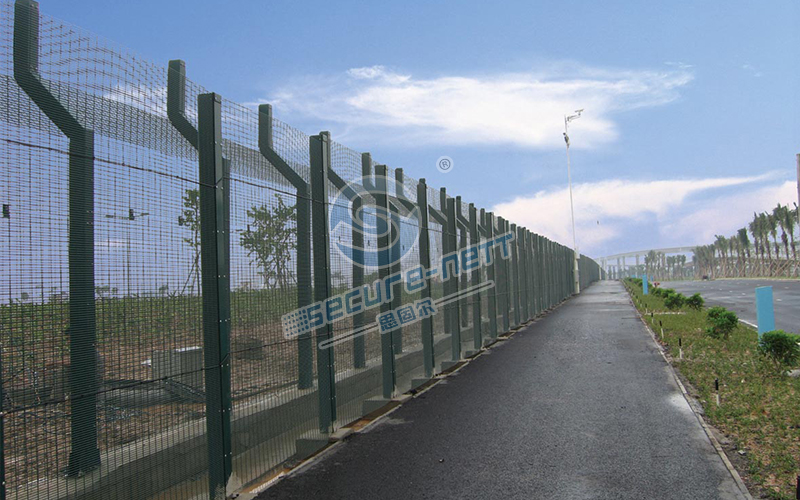

358 Security Fencing For Roads

358 Security Fencing For Roads

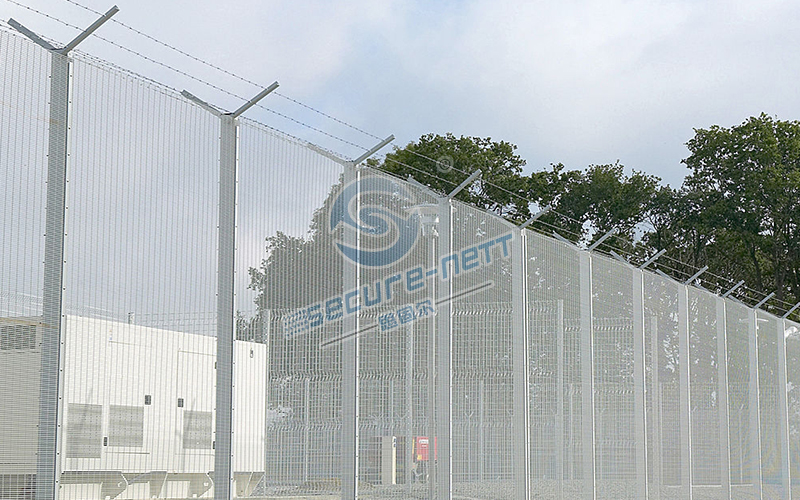

358 Security Fencing For-Factory

358 Security Fencing For-Factory

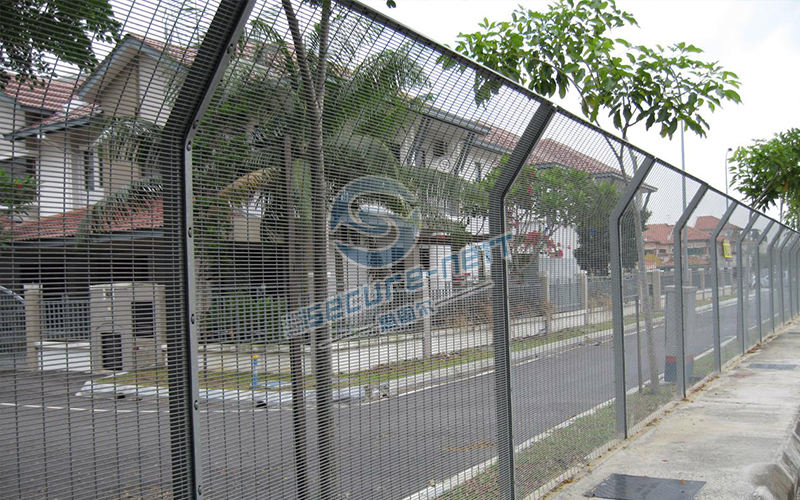

358 Security Fencing For residential areas

358 Security Fencing For Residential Areas

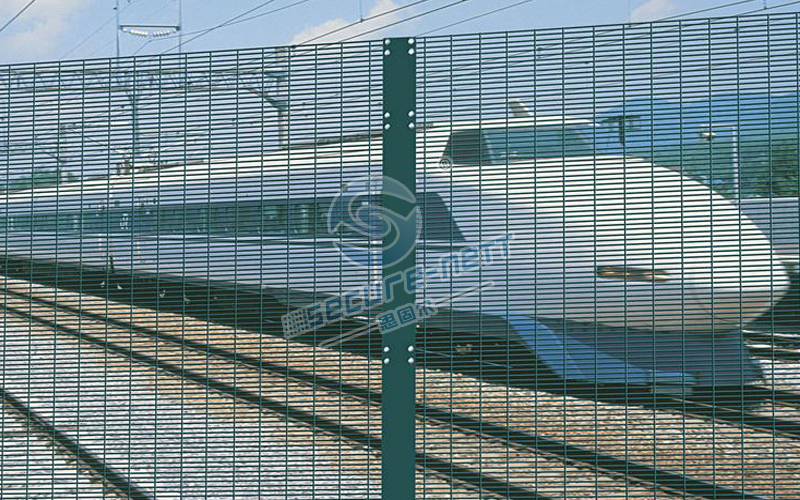

358 Security Fencing For railways

358 Security Fencing For Railways

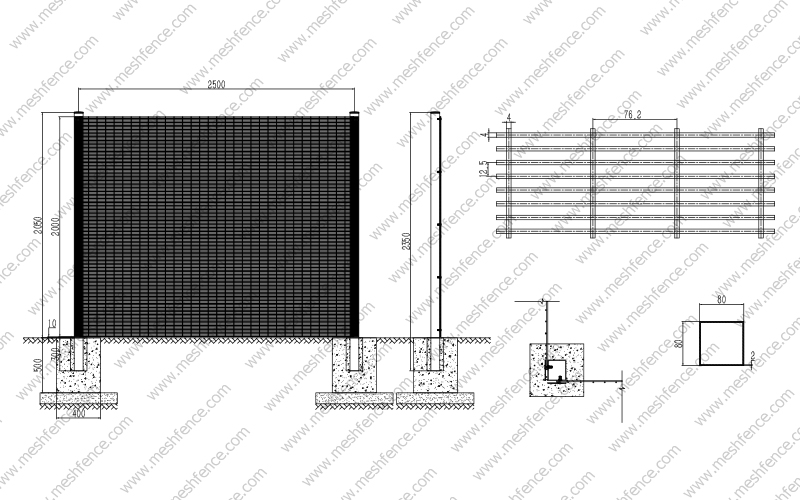

   Conceptual Drawings

358 Security Fencing Conceptual drawings

Product Process

Firstly  the low-carbon steel wire with a galvanizing amount of 270g/m2 is used for straightening and cutting, and the machine is used for integral welding the fence panel to ensure that the flatness of the mesh is fully welded.

Then the mesh is bent to form a “P “shaped design that is symmetrical at the top and at the bottom.

The column is made of cold-formed steel + high-frequency welding of 270g/m2 galvanized steel, cut into the length as required , machined with screw holes, and polished to remove raw.

Finally  post and panel are treated by electrostatic spraying powder coating to corrode in out door environment. Products can be ensured use for 10 years.

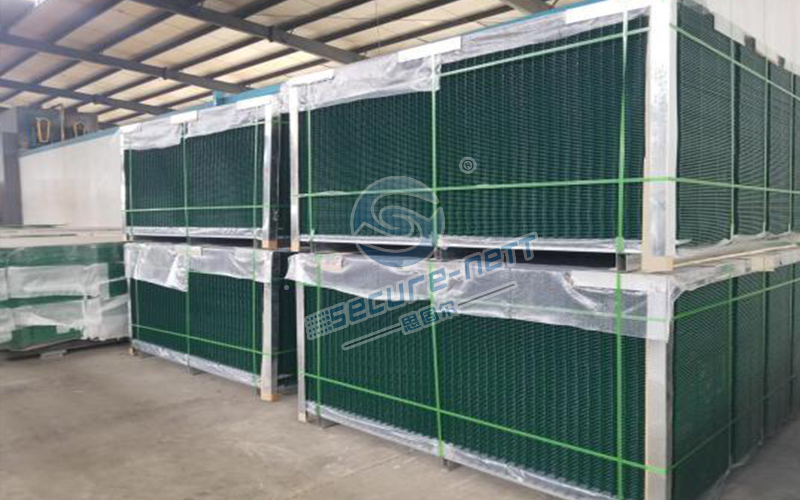

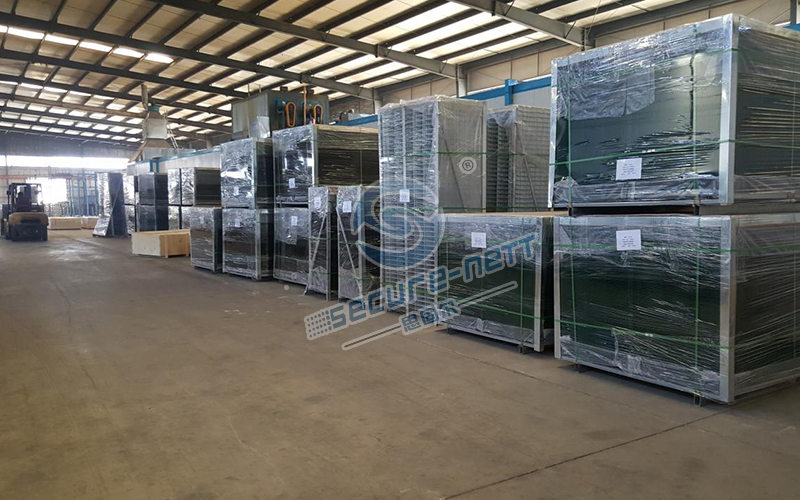

 Packing

358 Security Fencing Packing

358 Security Fencing Packing

Our Service

  • Free sample is available ,specifications based on your require.

  • OEM requires are accepted, We can deliver conceptual drawings to support your plans.

    As engineers we offer an evaluation of your designs and provide a workable solution.

  • Factory located in mainland of China, you are welcome to visit and we will accompany with you.

  • CE .SGS or other Certifications can be provided based on your require.

  • Our factory has established for 17 years and got ISO9001 quality certificate, High quality can be ensured.

  • As manufacture ,we got the competitive price and we can ensure the shortest delivery time.
