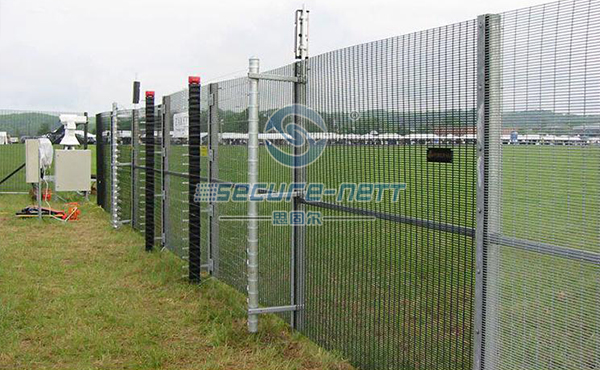

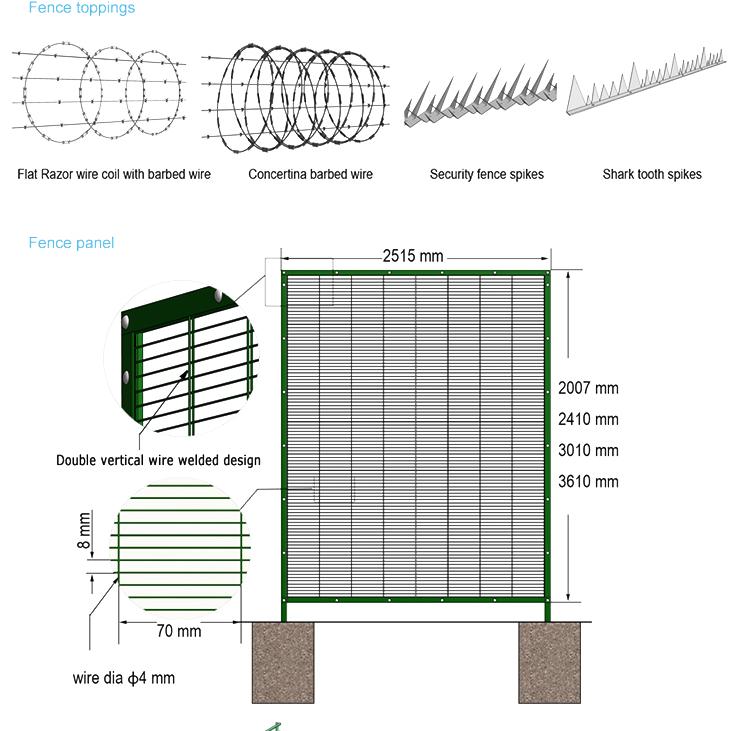

358 security fence prison security fence ,this kind of fence usually width is 2515 mm and height from 2007 mm to 3302 mm. Several panels can be installed on the top of each other, thus the 358 mesh fencing can achieve a total height of 6300 mm.
we controlled quality from the material, choosing the Q195/ Q235 HDG wire,4mm or 5mm C02+ARC welding connection flat bar: 80x4.0x3000mm with accessories: M8*130MM ,M10*100 bolts
matched 60/80/100mm square post form a high security fence systems. 358 security fencing produced by galvanized wire, high zinc coating approach: 60-80g/m2 then powder coating (150μ), or Hot dipped galvanized after welded, the zinc coating can be achieved more than 400g/m2, so this fence panels with high corrosion resistance can be suite mostly environments.
358 High Security Mesh Fence Specifications:
358 welded anti climb security fence panels, welded strength-80% of the minimum tensile strength of the wire, range: 540-690n/m2.
Popular two type below for your reference:
Type-1 flat mesh panels
Mesh size | Wire dia. | Surface | Width | Height |
76.2x12.7mm; 75.0x12.5mm | Cross wire: 3.0,2.5,4.0mm Line wire: 4.0mm | Hot dipped galvanized+ powder / pvc coated | 2.0-2.5m | 1.8-3.0m |
Type-2 mesh panels with V folds (3-6 Number of folds)
Mesh size | Wire dia. | Surface | Width | Height |
76.2x12.7mm | Cross wire: 3.0,2.5,4.0mm Line wire: 4.0mm | Hot dipped galvanized+ powder / pvc coated | 2.0-2.5m | 1.8-3.0m |

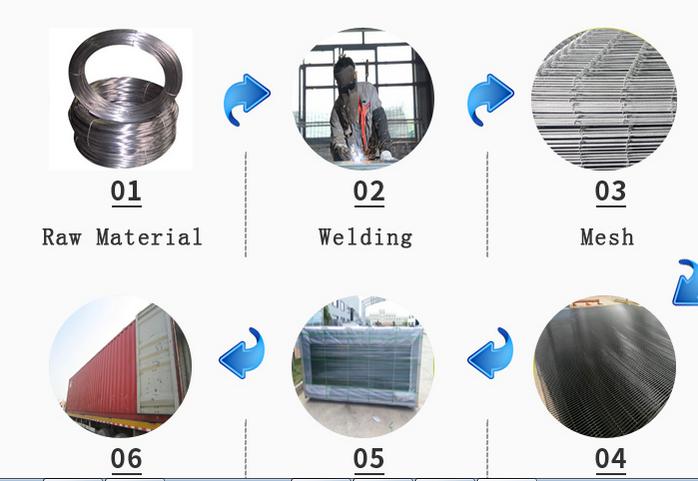

Anti-Climb 358 Security Mesh Fence Producing Process:

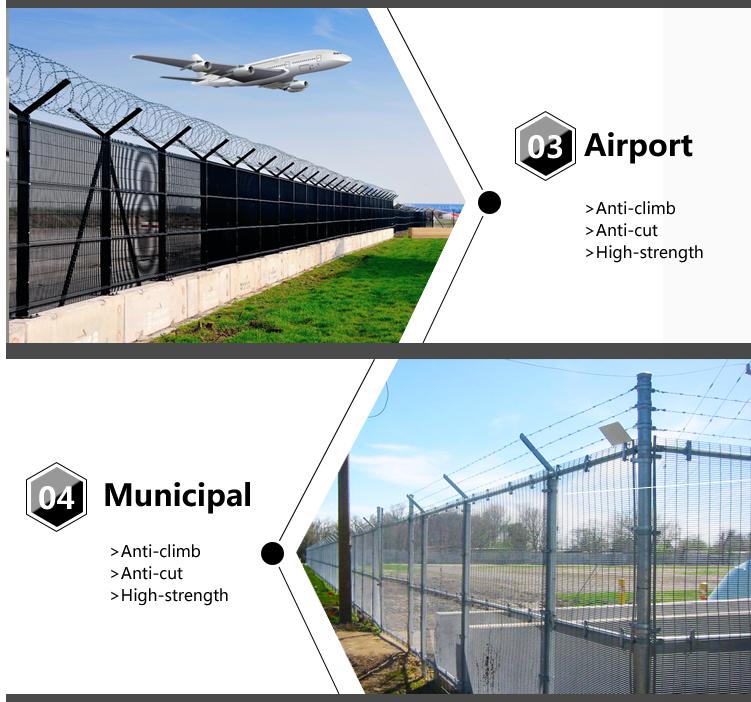

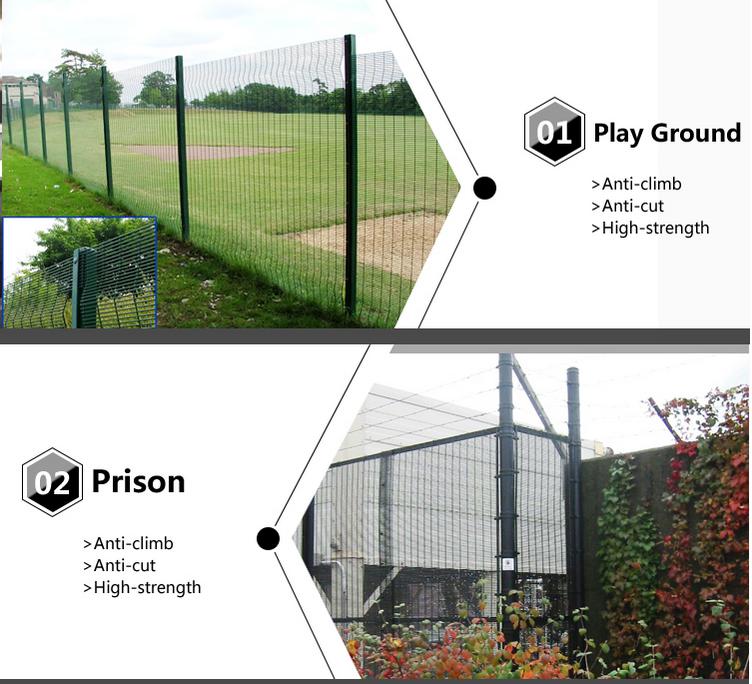

358 security fence anti-climb fence application:
· Perimeter – medium / high security
· Boundary demarcation
· Industrial units
· Warehousing
· Schools
· Residential
