3D curved PVC metal welded wire mesh panel

Views:10     Author:Site Editor     Publish Time: 2018-11-25      Origin:Site Inquire

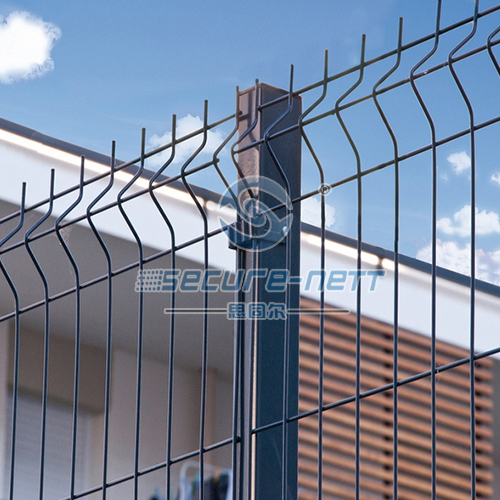

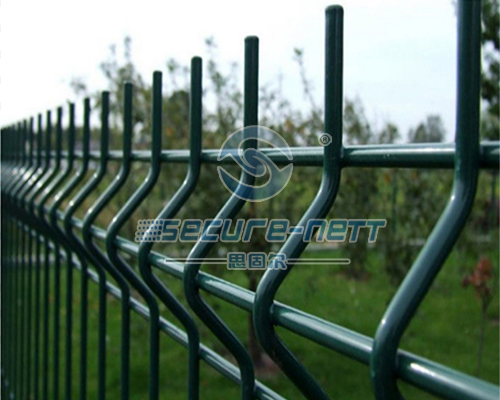

3D curved PVC metal welded wire mesh panel is a safe and attractive fence with beautiful appearance. It is an ideal choice for residential areas and entertainment places.The curved fence panels can also be called 3D fences. It is mainly made of stainless steel or carbon steel.

3D curved PVC metal welded wire mesh panel

Firstly, the worker welds the wire to the panel, and then bends the wire into a rectangular short edge using a bending machine to produce a V-shaped curve. It is important to note that the number of V shaped curves depends on the height of the welding line. The triangle stability principle provides extra strength and stiffness for the panel. In addition, curved fences can be installed in flat areas or slopes, and can also be applied to various land types, such as general land surface or sand.

3D curved PVC metal welded wire mesh panel

Specification – Curvy fence panel

Material

carbon steel wire, stainless steel wire.

Surface treatment

galvanized, polyester coated, PVC coating.

Wire diameter

2–6.5 mm.

· Mesh Hole Size

Spacing between vertical wire (mm)

50, 55, 60, 75, 80.

Spacing between horizontal wire (mm)

50, 100, 150, 200.

Panel width

1.5–4.0 m.

Panel height

0.6–3.0 m.

Curve quantity

0.6–1.3 m, 2 curves.

1.3–1.6 m, 2 or 3 curves.

1.6–1.9 m, 3 curves.

1.9–2.1 m, 3 or 4 curves.

2.1–2.4 m, 4 curves.

Color

·

RAL 6005 green, RAL 9005 black, RAL 5010 blue, RAL 3000 red, RAL 9010 white. All RAL color can be customized.

Installation method

flange or directly buried in the ground.

3D curved PVC metal welded wire mesh panel have stable, durable and flexible structures and are widely used as fences for airports, schools, factories, residential areas, gardens, warehouses, gymnasiums, military and entertainment venues. We can install curved fences in general places, but in military sites or prisons, the height of curved fences should be higher, you can choose the appropriate height according to your application.
