3D Wire Mesh Panel

Views:14     Author:Site Editor     Publish Time: 2018-11-08      Origin:Site Inquire

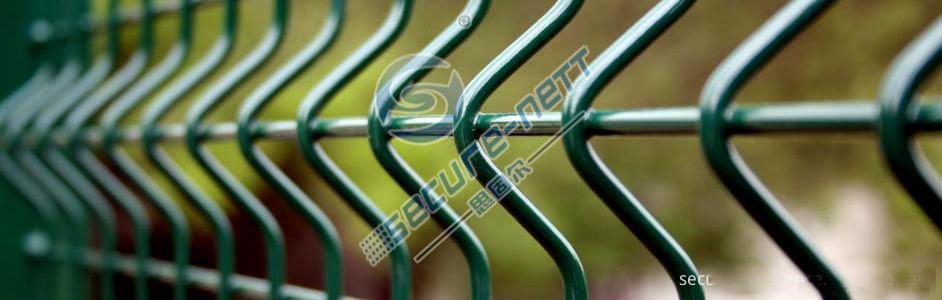

3D Wire Mesh Panel very popular for many clients which is very economical, colorful and high protection , usually have 3-4 folds on the pvc powder coated 3D fence panel  and 3d wire mesh panel is a system designed for industrial application but it can also be used at sports fields or in the private sector. made of horizontal wires of 5 mm diameter and vertical wires of 5 mm, or 4 mm diameter. The wires provide great strength, resistance and stability. To increase strain capacity, the panels are fitted with horizontal moulds. Nylofor 3d wire mesh fencing system is produced in two finish versions. The basic version is galvanized and then the segments can be varnished by colors according to the RAL color table.

Height: from 1000 mm to 2000 mm

Surface finish: galvanized, Powder-coated, without finish

The columns for the fence panels are either round or rectangular. The columns should always be higher than the netting (by 600 mm).

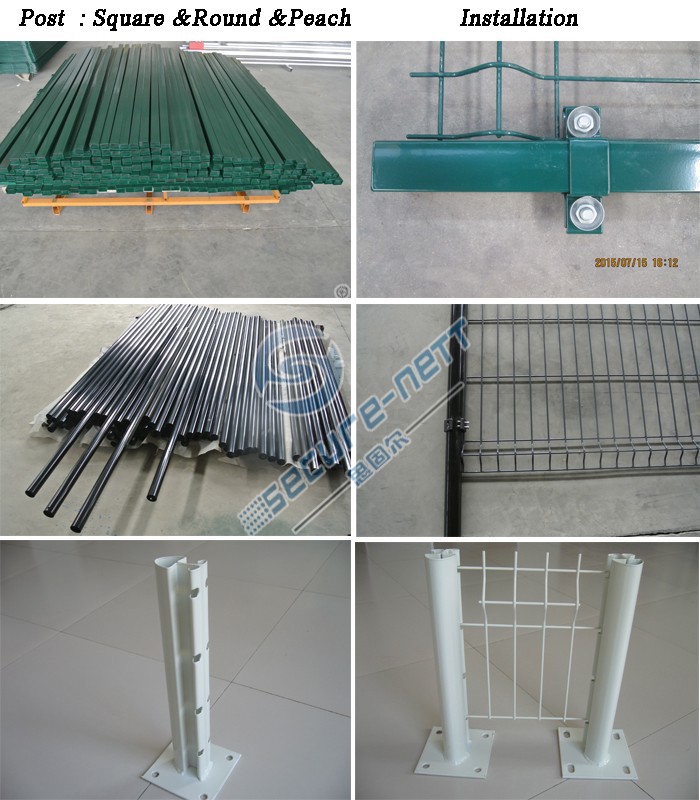

Column heights from 1500 mm to 4000 mm, out dia. 60x60mm or  80x80mm,round post: 38mm, 48mm 60mm and peach post


3D Wire Mesh Panel Surface finish: galvanized, powder-coated

3D Wire Mesh Panel

3D wire mesh panel Specification:

Height (m)

Length (m)

Wire dia.    (mm)

Mesh Size  (mm)

V Shape   (no.)

1.03

2.0

2.5

Powder

50x200

2

1.23

3.85/4.0

50x100

2 or 3

1.53

4.85/5.0

50x150

2 or 3

1.73

5.85/6.0

55x200

2 or 3

1.93

Pvc

60x150

3

2.0

3.0/4.0

60x200

3

2.03

4.0/5.0

65x200

3 or 4

2.4

5.0/6.0

75x100

3 or 4

3D Wire Mesh Panel

Also can do custom-made.

Welded wire mesh 3D fence panel matched common post:

60*40*1.3mm ; 80*80x1.5mm; 100*100*2.0mm, galvanized or powder coated as request

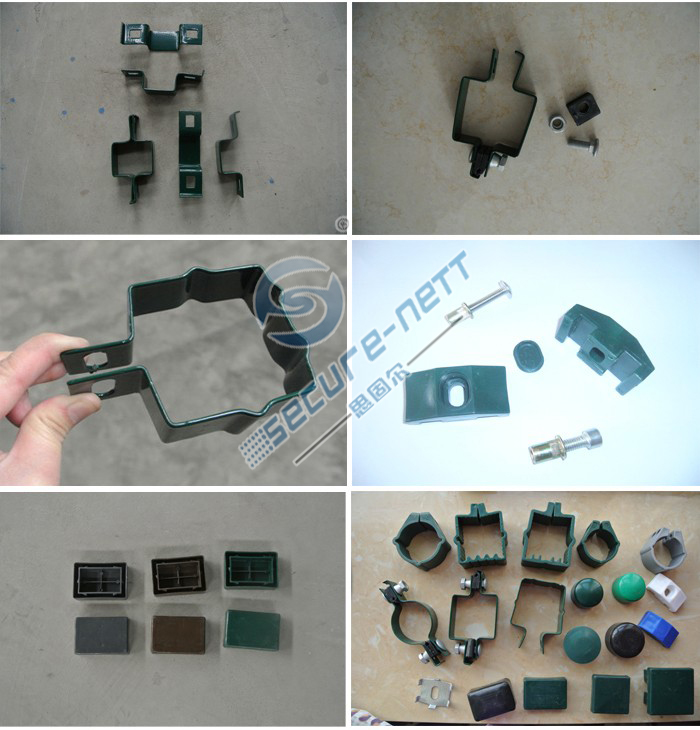

3D wire mesh panel regular accessories:

3D Wire Mesh Panel

3D wire mesh panel packing & shipping:

1. packed in metal pallet and wrapping with plastic film

2. Pallet with 4 metal corners to protect the wire mesh fences from damage during the shipping

3. Square post usually 200pcs/pallet with plastic film

4. wire mesh fence accessories packing in the carton

3D Wire Mesh Panel

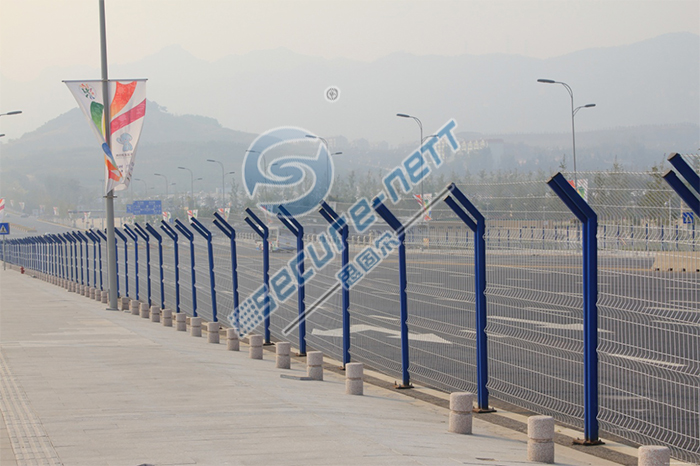

3D-Wire-Mesh-Panel Applications:

· Perimeter – medium / high security

· Boundary demarcation

· Industrial units

· Warehousing

· Schools

· Residential

3D-Wire-Mesh-Panel Advantage:
