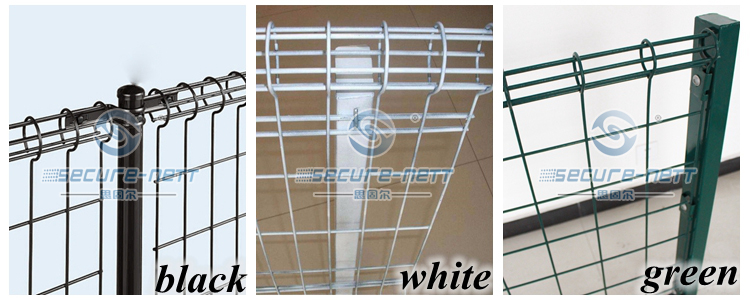

The panels of roll top fencing consist of a unique and attractive, closed beam section located along the top and bottom edge of the panel. It is user friendly with no sharp or raw edges. These type of fencing panels are ideal where safety is a consideration.
Height(mm) | 1000, 1200, 1500, 1800, 2000, 2500 |
Post distance(mm) | 2500, 3000 |
Wire diameter(mm) | 4.0, 5.0, 6.0 |
Mesh size(mm) | 50 x 150; 50 x 200; 75 x 150 |
Post(mm) | Round: 48, 60; Square: 50 x 50, 60 x 60, 80 x 80 |
Material | low carbon steel |
Surface treatment | hot dipped galvanized; polyester powder coating; PVC coated |
Color | RAL Green or Black, or as your requirement. |
Other specification are available on request. | |
a) The production line of fence panel
Production Line: Material---Straighten & Cut short machine---Welded machine---Galvanized bath---Bending machine---PVC- coated machine & Powder coated machine
b) The production line of fence posts
Proction Line: Material---Cut short machine---Sandblasting machine---Galvanized bath---Parkerizing tank---powder coated machine
C) Powder Coating Process
Acquiring Raw Material ---Cleaning with Mineral Turpentine Oil ----Cleaning with 3 IN 1 Chemical-Rusted---Cleaned Material Carried into the Coating Booth ---Coating the Material with the Desired & Given Colours----Baking the Coated Material Up to 180 degree to 200 degree & curing it for 15-20min----Inspection of Material (Tests)----Final Inspection
2, Roll Top Fences size:
Specification | fence panel |
Wire diameter | 3.5-6.0mm |
Mesh size | 50x100mm,75x150mm,50x200mm |
Height | 1030mm, 1230mm, 1530mm, 1830mm, 2030mm,2430mm |
Length | 2000mm,2500mm |
Surface treatment | Powder coated, Pvc coated ,Hot dipped galvanized, |
2, Fence post size:
post items | Post dia | Post thickness | Post length |
Square post | 40x60mm or 60x60mm | 1.2-3mm | 1.5m-2.9m |
Peach shape post | 50x70mm or 70x100mm | ||
Round post | 38mm, 40mm, 50mm,70mm |

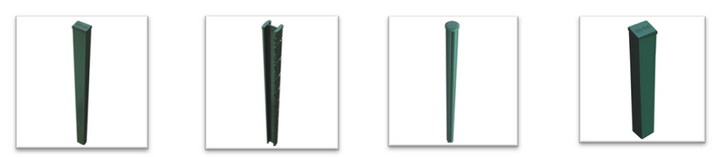

Post Style:
