868 Double Wire Mesh Fencing

Views:6     Author:Site Editor     Publish Time: 2018-11-09      Origin:Site Inquire

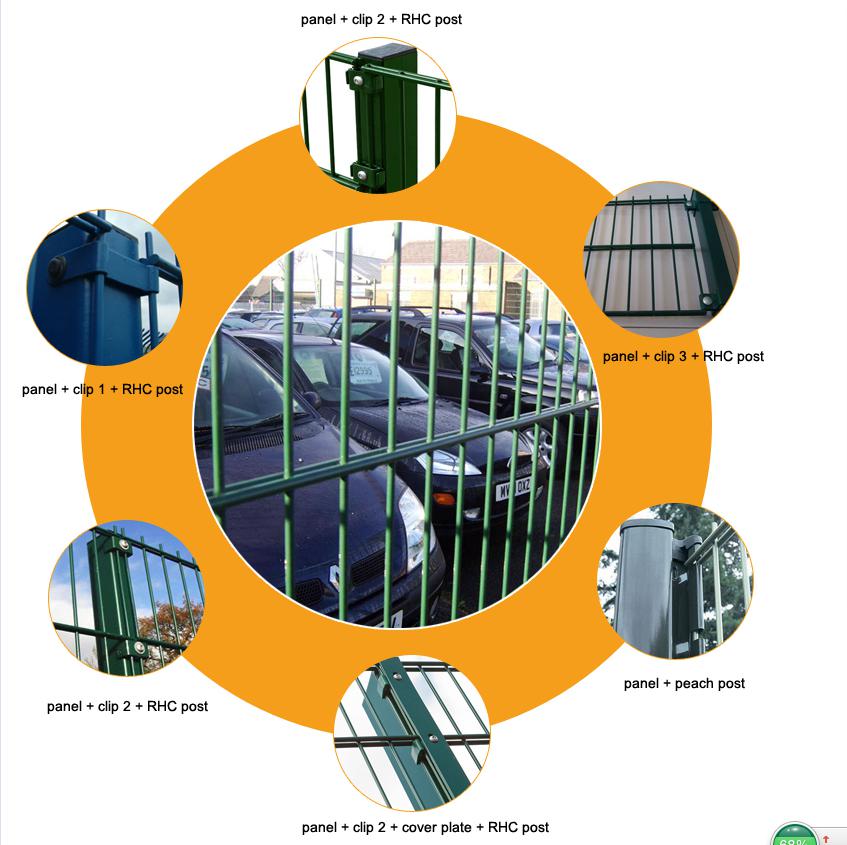

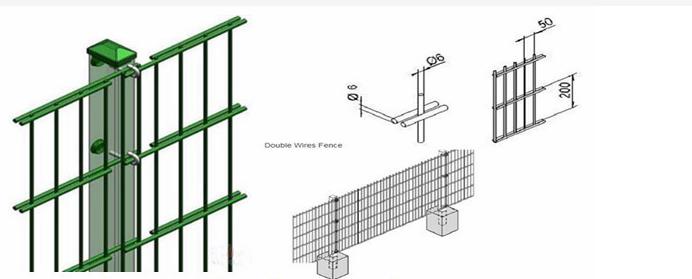

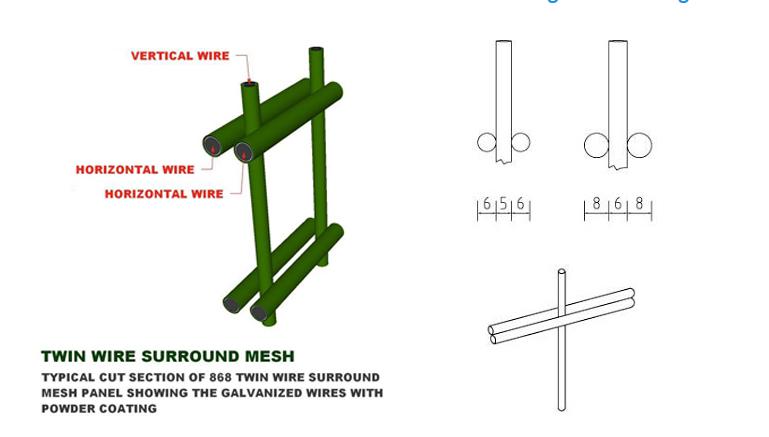

868 Double Wire Mesh Fencing have 2 no. of same dia. wire in cross direction, nip welded 1 wire in line direction, so also called 656 or 868 double wire fence. Matching double wire doors and square post, round post, peach post etc. which form a whole completely fence systems with high protection.

High quality galvanized welded double wire mesh fence preventing people from cutting through or climbing and Use a double wire manufacturing process, double wire mesh fencing system offers protection

Available in a wide variety of RAL colors and over 20 different heights, welded wire mesh panel can be tailored for every installation.

868 Double Wire Mesh Fencing

868 Double Welded Mesh Fencing Specification:

Material:

HDG galvanized wire, steel wire

Wire Dia.

6*2+5 ; 8*2+6

Mesh Size:

50x200mm, 55x200mm, 50x100mm

Height:

0.63-2.43m

Length:

2-3m

Matching Post:

60*60mm; 80*80mm; 100*100mm

Surface Treatment:

Powder coated ; pvc coating; HDG galvanized after welded

Zinc Coating:

40-300g/m2 ;  >300g/m2

Usually the mesh fence panel have tolerance when the producing

Height and Length: <1000mm +/-5.0mm ; 1000-2000mm +/-10mm ; 2000-3000mm +/-15mm ; > 3000mm +/-20mm

Wire Dia. : 0.05-0.10mm tolerance

868 Double Wire Mesh Fencing

868 Double Wire Mesh Fencing

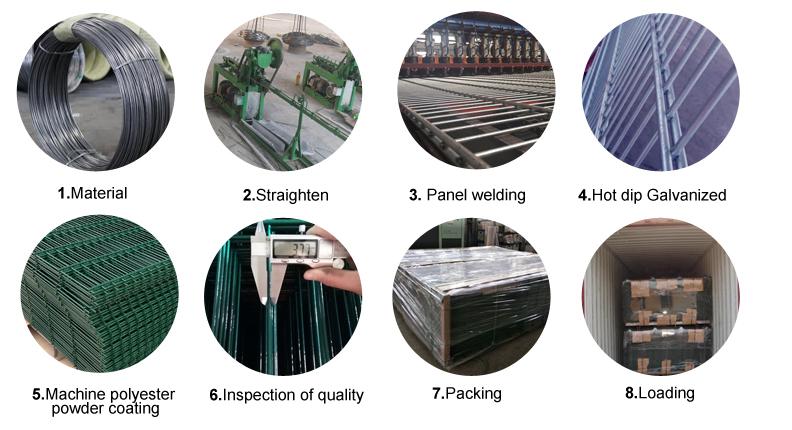

High Quality Galvanized Welded Double Wire Mesh Fence Producing Process:

868 Double Wire Mesh Fencing

868 Double Wire Mesh Fencing
